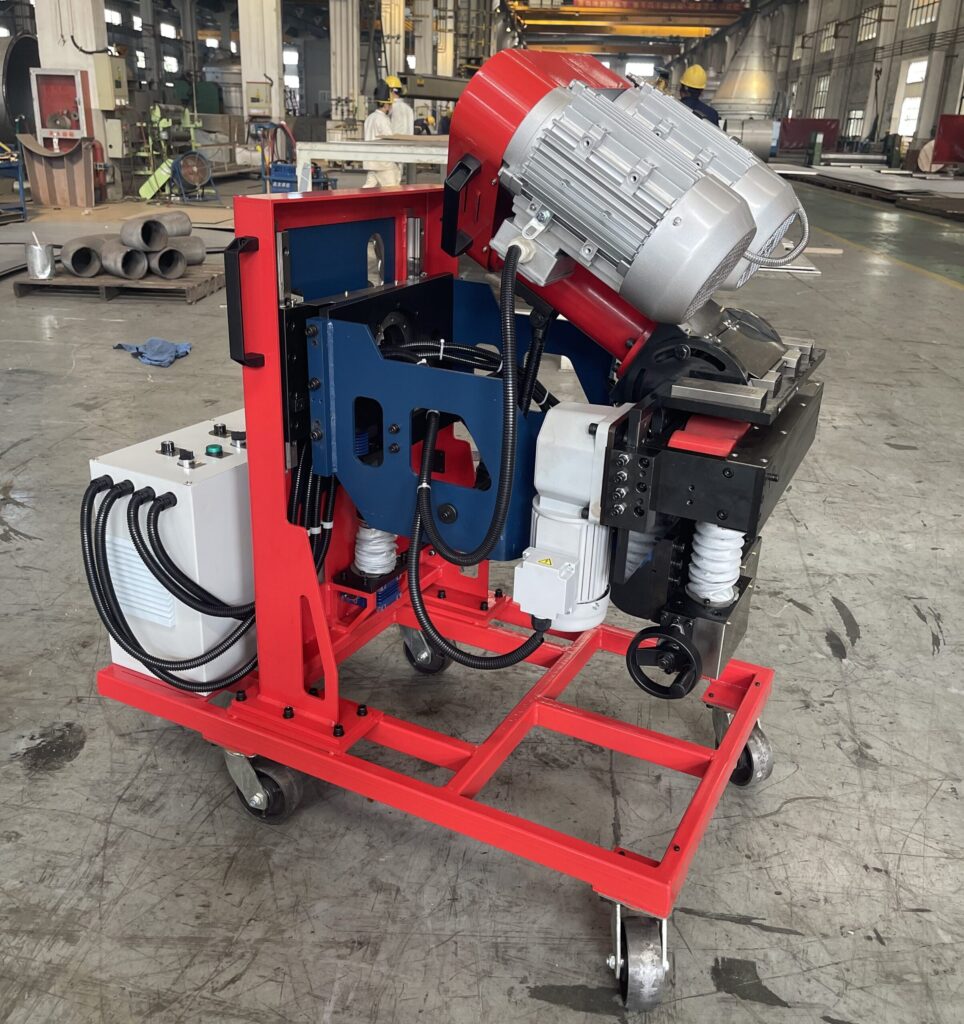

PMM Series Steel Plate Bevel Milling Machine

Product Overview

Solve your business pain points through innovative technical solutions

This PMM series steel plate bevel milling machine is mainly used for beveling steel plates across various industries, providing high-quality bevels for subsequent high-quality welding; during bevel processing, it performs automatic milling with insert cold cutting. It can process various metal materials such as carbon steel, stainless steel, alloy steel, and aluminum alloy. The processed bevel surface is free of oxidation and contamination, does not affect the base material, and features strong processing capability, easy operation, and low operating cost.

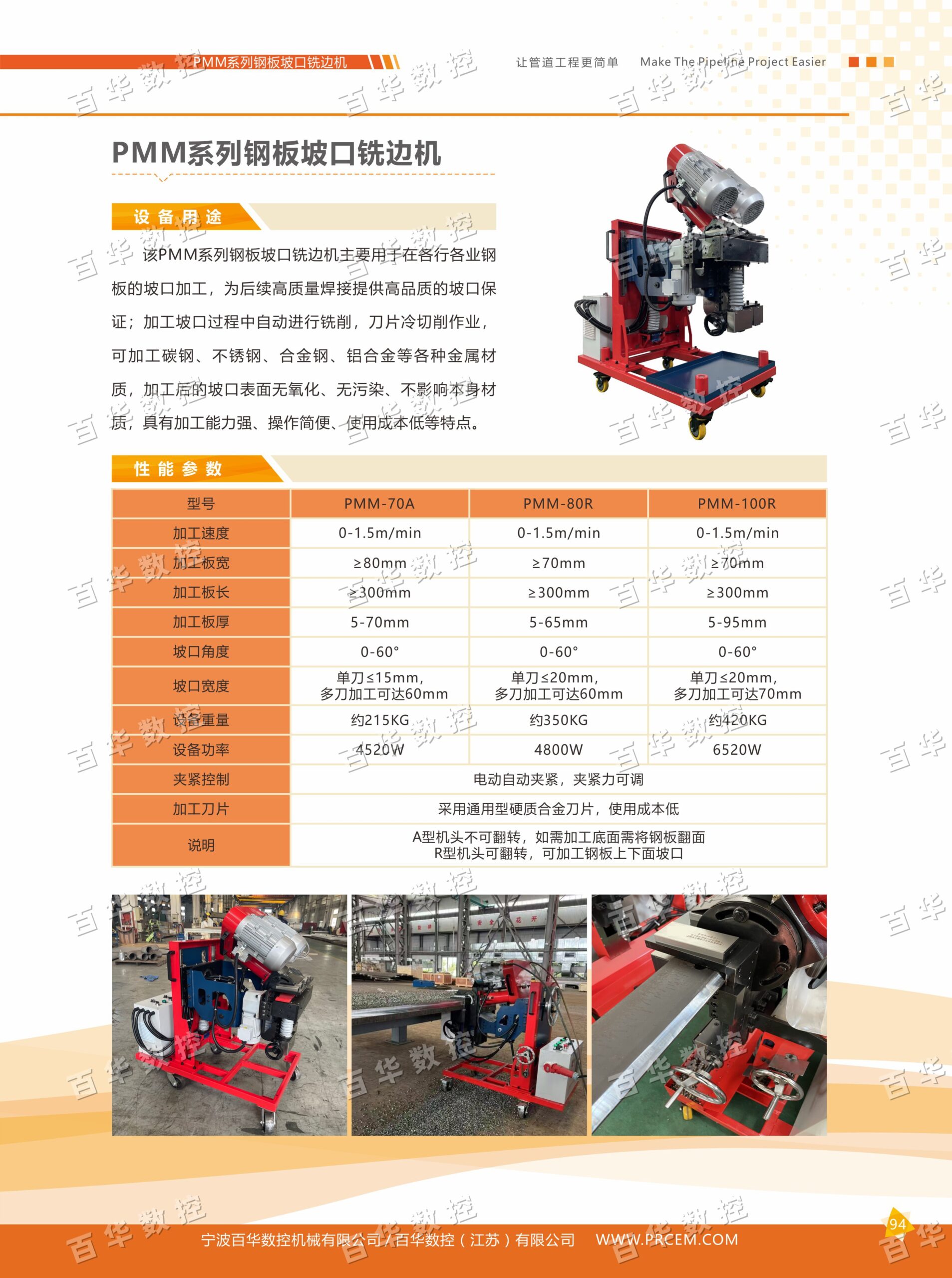

Product Brochure

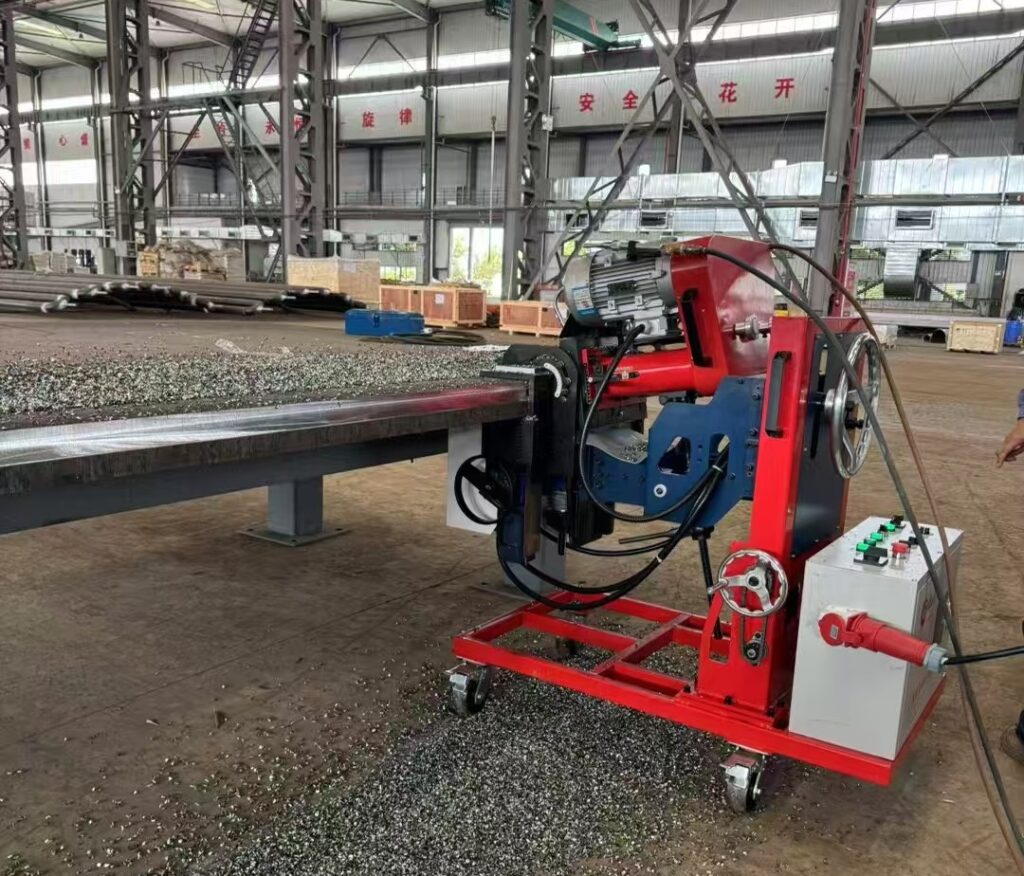

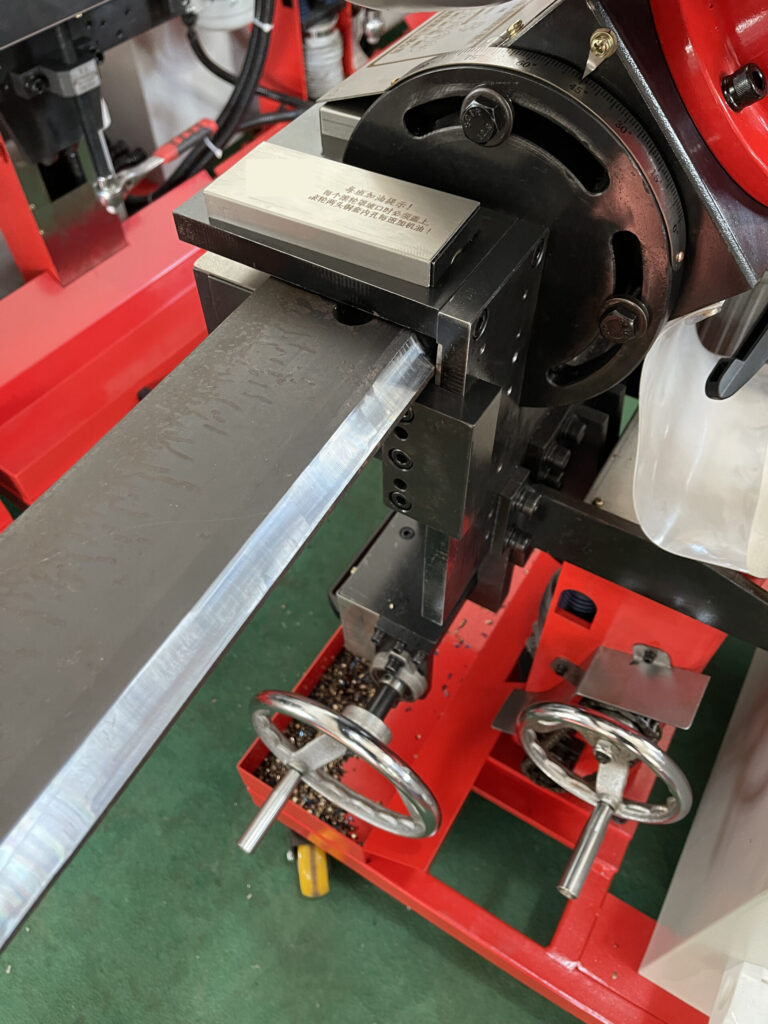

Showcase product details and real application scenarios from multiple angles

Product Specifications

Overview of model specifications and technical performance metrics

Equipment Specifications Table

Equipment Model	PMM-70A	PMM-80R	PMM-100R
Processing Speed	0-1.5m/min
Processing Plate Width	≥80mm	≥70mm	≥70mm
Processing Plate Length	≥300mm
Processing Plate Thickness	5-70mm	5-65mm	5-95mm
Bevel Angle	0-60°
Bevel Width	Single cutter ≤15mm Multi-cutter processing up to 60mm	Single cutter ≤20mm Multi-cutter processing up to 60mm	Single cutter ≤20mm Multi-cutter processing up to 70mm
Equipment Weight	Approx. 215KG	Approx. 350KG	Approx. 420KG
Equipment Power	4520W	4800W	6520W
Clamping Control	Electric automatic clamping, adjustable clamping force
Cutting Inserts	Uses general-purpose carbide inserts for low operating cost
Notes	Type A head: Non-flippable; for bottom-surface processing, the steel plate must be turned over Type R head: Flippable; can process bevels on both the top and bottom surfaces of the steel plate

※Due to continuous product iteration and upgrades, and different operating conditions among users in different industries, the configuration and performance parameters are subject to the product at the time of order.
