FMM Series Flange Facing Lathe
Product Overview
Solve your business pain points with innovative technical solutions

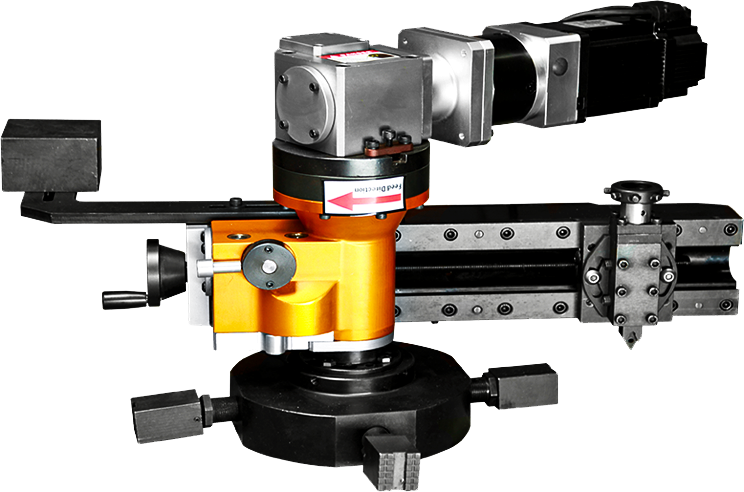

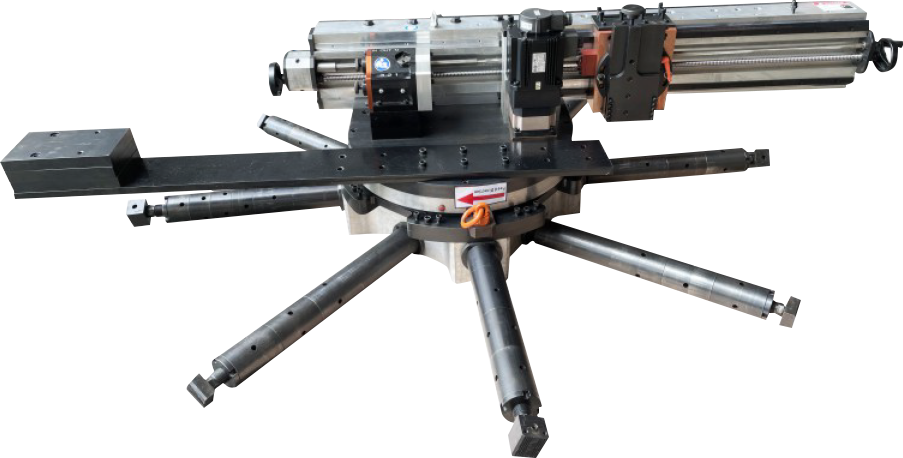

The FMM Series flange facing lathe is widely used for flange end-face turning in many fields, including pressure vessels, nuclear power, petrochemicals, offshore oil, metallurgy, and more. It is specially designed and developed for machining flange faces, phonographic finish (serration) lines, and sealing grooves. High-precision linear guideways and ball screws are used to ensure machining accuracy. The machine adopts an internal clamping method, fixing to the inside opening of the pipe or flange, making it convenient to operate and easy to install and remove. It is an ideal piece of equipment for flange-face repair and machining, as well as various types of sealing surface machining.
It can be installed and used in horizontal, vertical, or inverted positions, and offers three optional power drive systems: servo motor, pneumatic motor, and hydraulic motor.

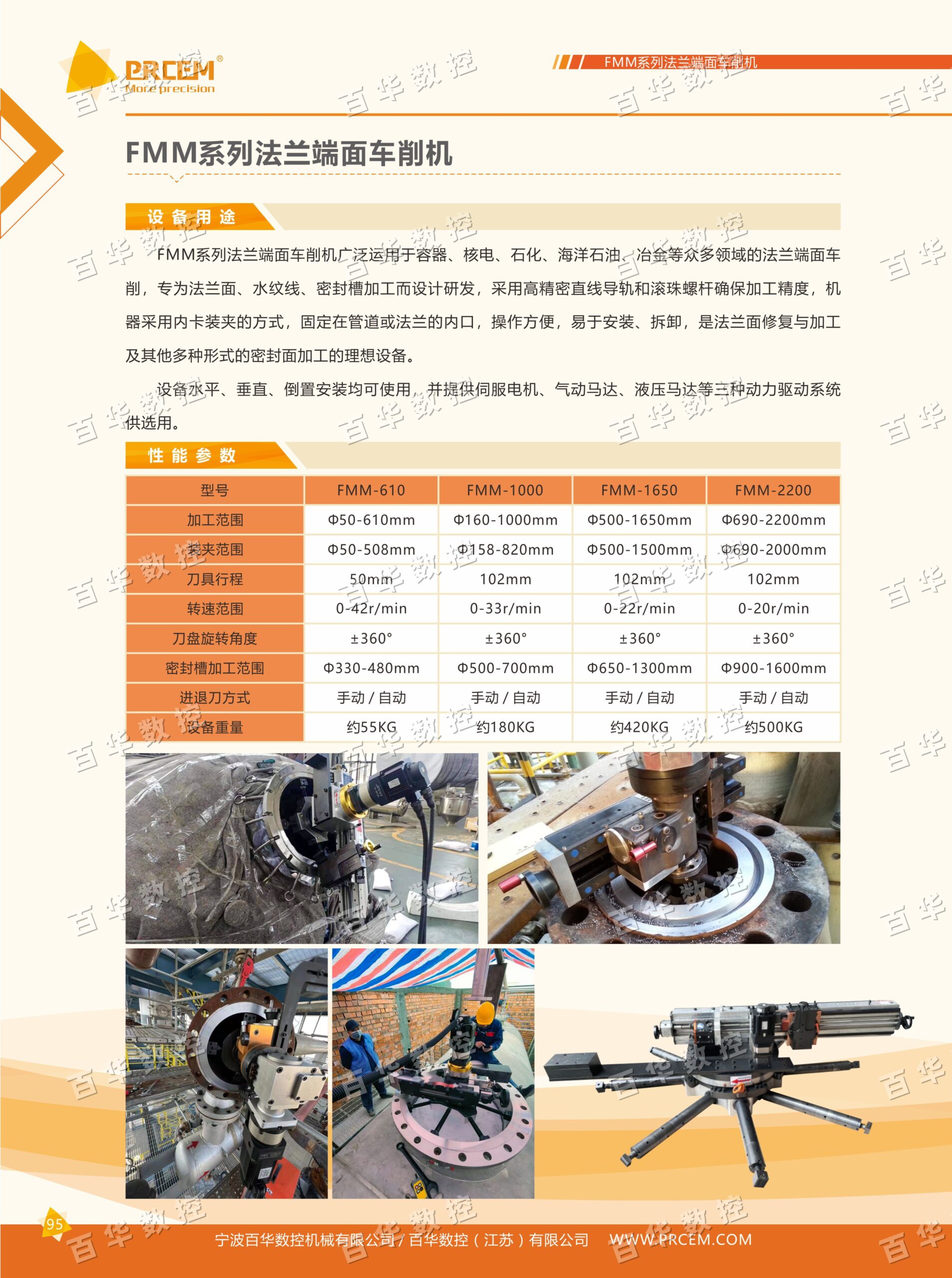

Product Brochure

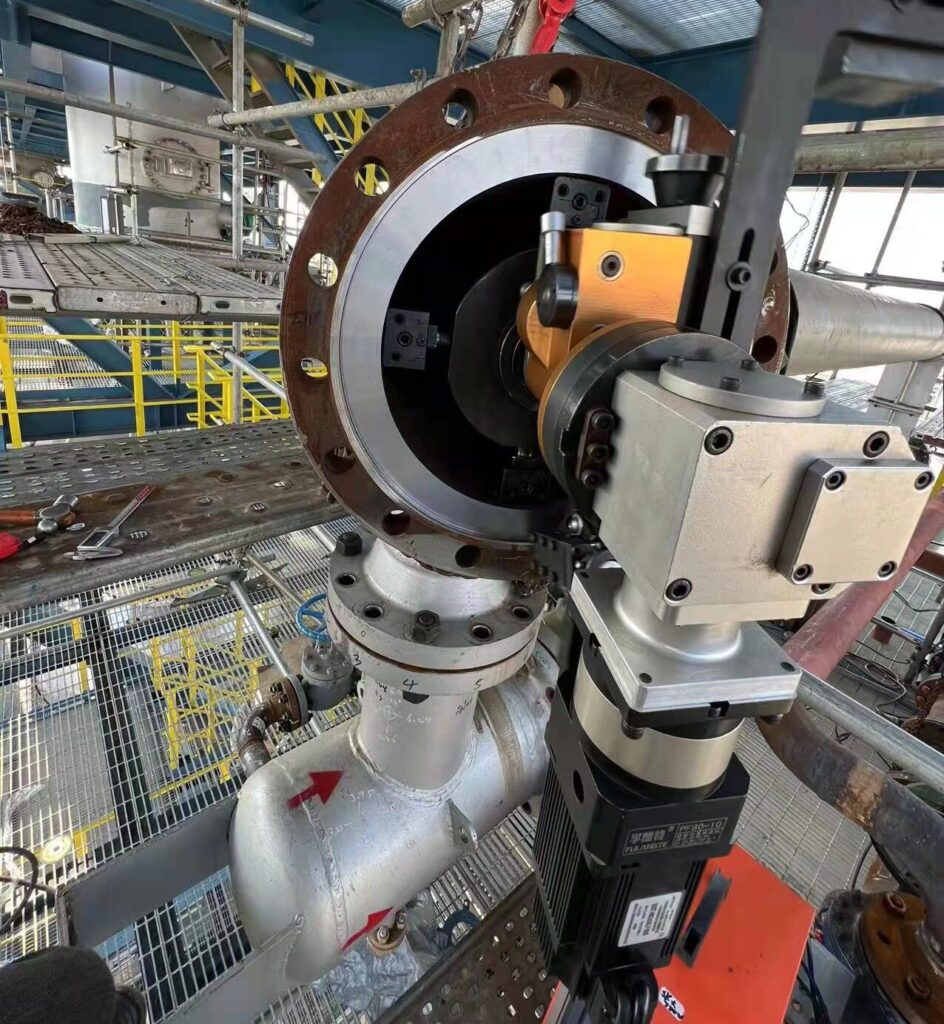

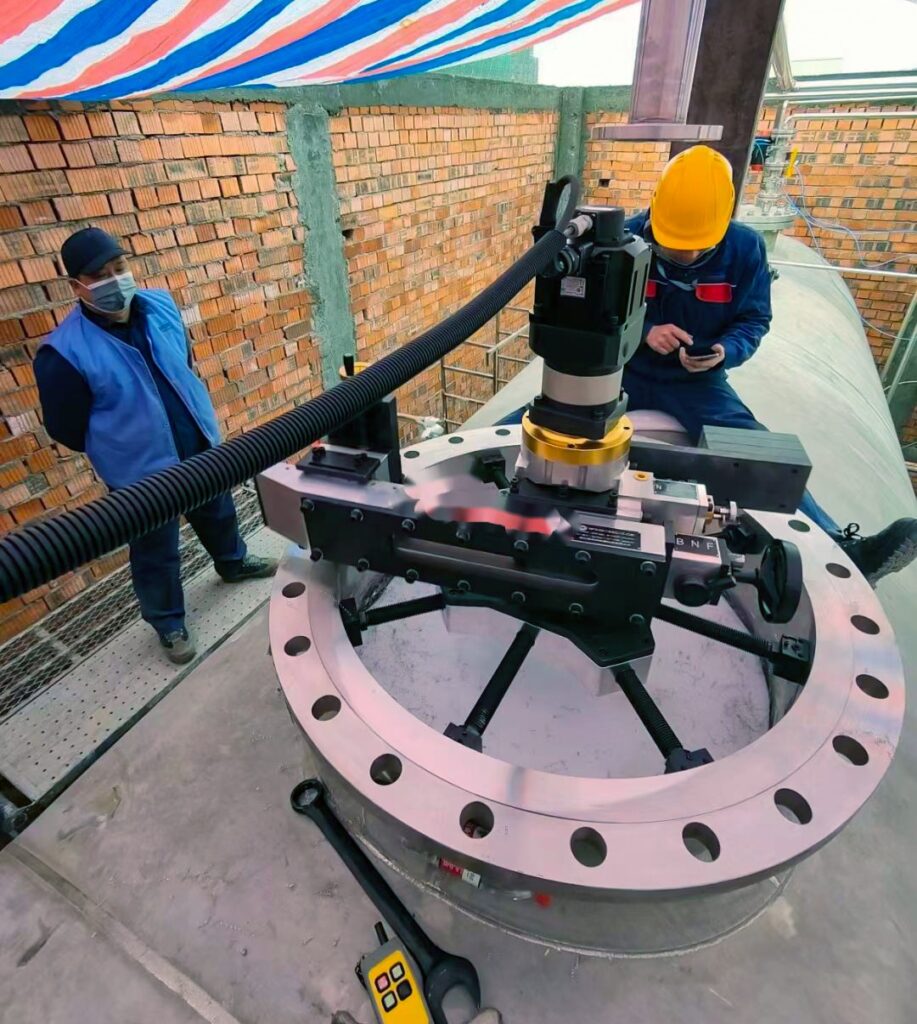

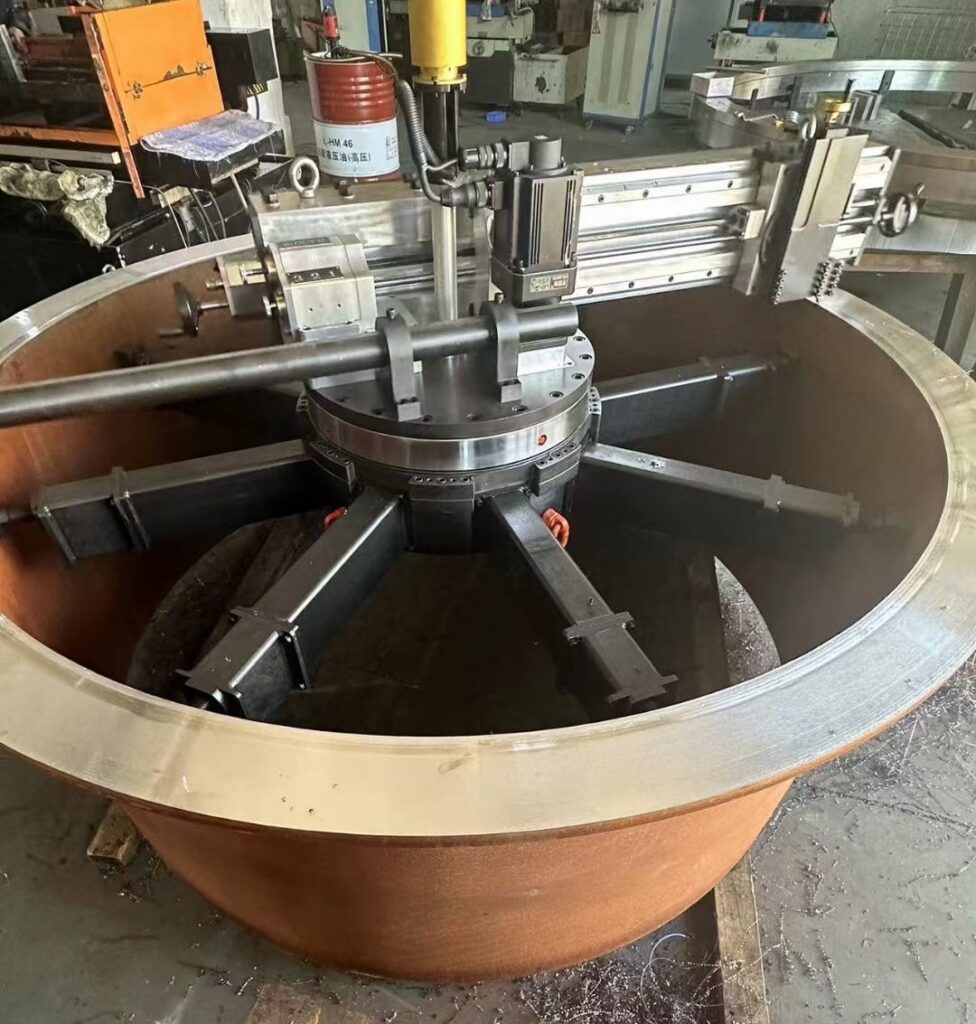

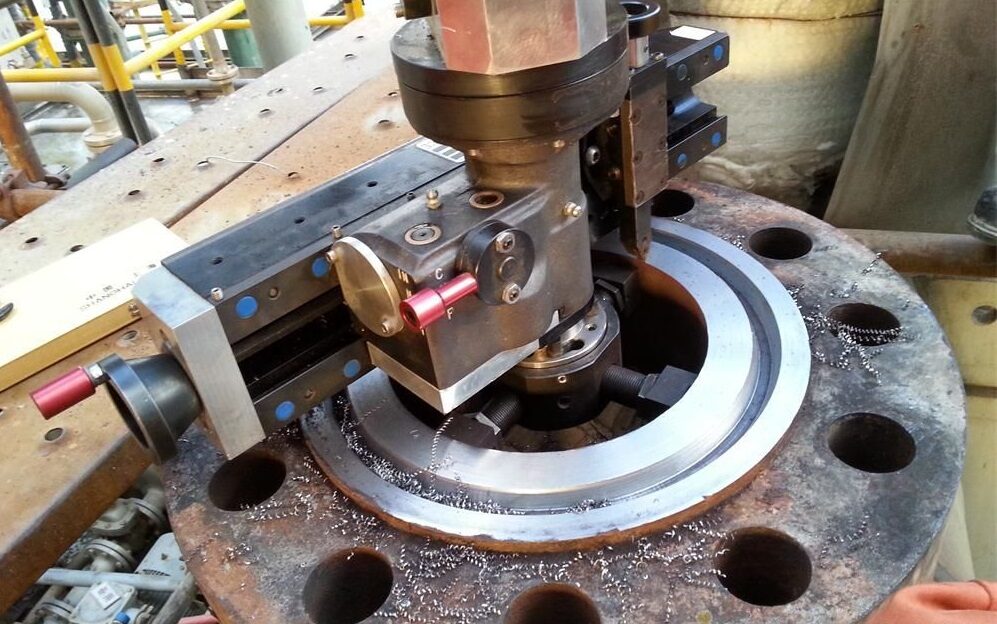

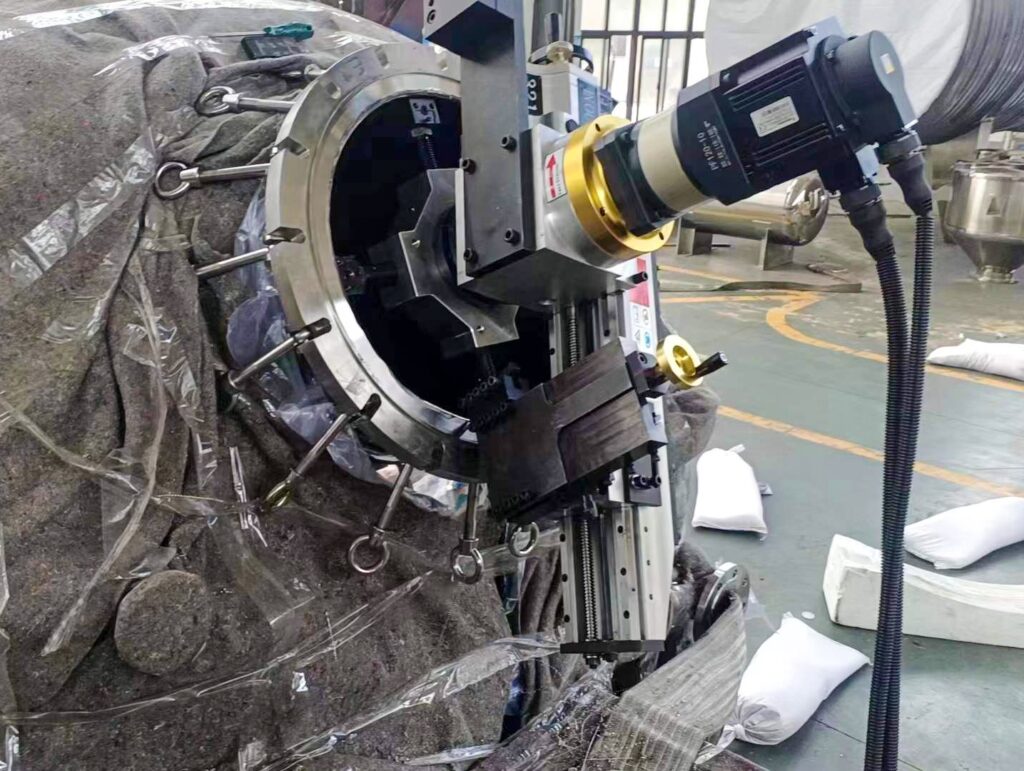

Showcase product details and real-world application scenarios from multiple angles
Product Specifications
At a glance: specifications, models, and technical performance metrics
| Equipment Model | FMM-610 | FMM-1000 | FMM-1650 | FMM-2200 |
|---|---|---|---|---|
| Machining Range | Φ50-610mm | Φ160-1000mm | Φ500-1650mm | Φ690-2200mm |
| Clamping Range | Φ50-508mm | Φ158-820mm | Φ500-1500mm | Φ690-2000mm |
| Tool Travel | 50mm | 102mm | 102mm | 102mm |
| Speed Range | 0-42r/min | 0-33r/min | 0-22r/min | 0-20r/min |
| Cutterhead Rotation Angle | ±360° | |||
|
Sealing Groove
Machining Range
|
Φ330-480mm | Φ500-700mm | Φ650-1300mm | Φ900-1600mm |
| Tool Infeed/Retraction Method | Manual / Automatic | |||
| Equipment Weight | Approx. 55KG | Approx. 180KG | Approx. 420KG | Approx. 500KG |
※Due to continuous product iteration and upgrades, and differences in operating conditions across industry users, the configuration and performance parameters are subject to the product ordered.
