SAWM Scaffold Upright Automatic Welding Machine
Product Overview
Innovative technical solutions to address your business pain points
The SAWM Scaffold Upright Automatic Welding Machine is designed for the assembly and welding of scaffold uprights and chrysanthemum plates. It integrates all processes from chrysanthemum plate assembly positioning, pipe loading and threading, positioning spot welding to finished product discharge in a single machine. With compact process connections and PLC CNC control technology, it achieves high automation. Additionally, it can be configured with 12 or 13 welding guns for synchronous welding, delivering extremely high welding efficiency.

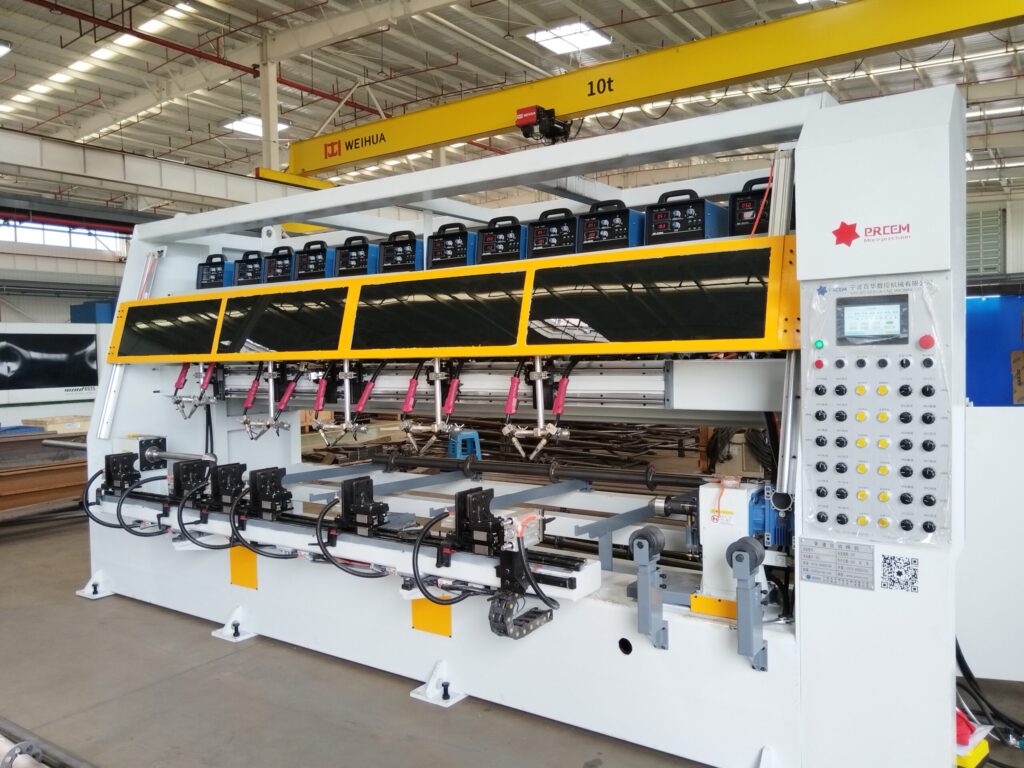

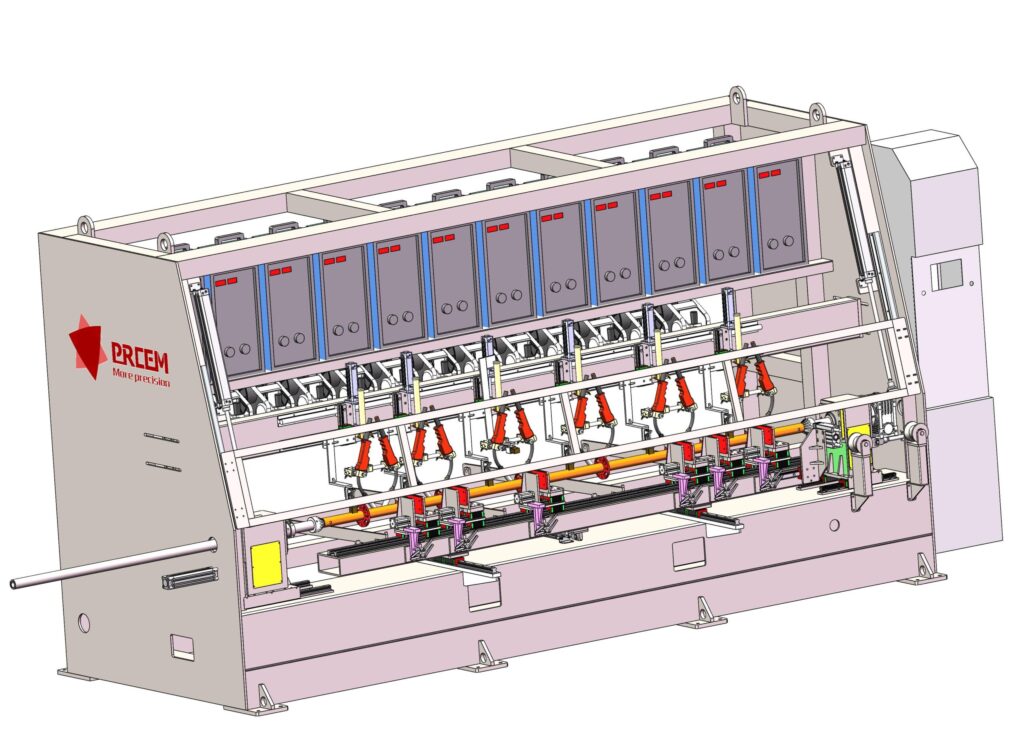

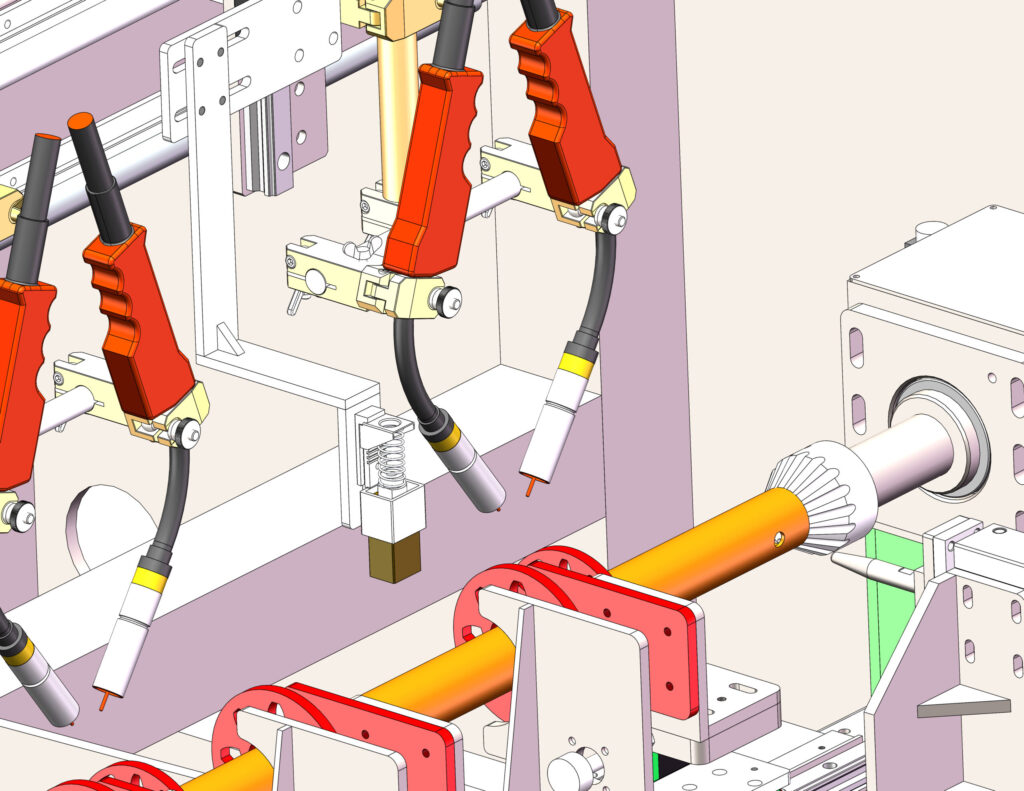

The equipment consists of a bed, stepping drive headstock, pneumatic tailstock, pneumatic clamping bracket, pneumatic gun lifting device, pneumatic pipe feeding mobile platform, pneumatic lifting arc shield, welding power source, and CNC control system.

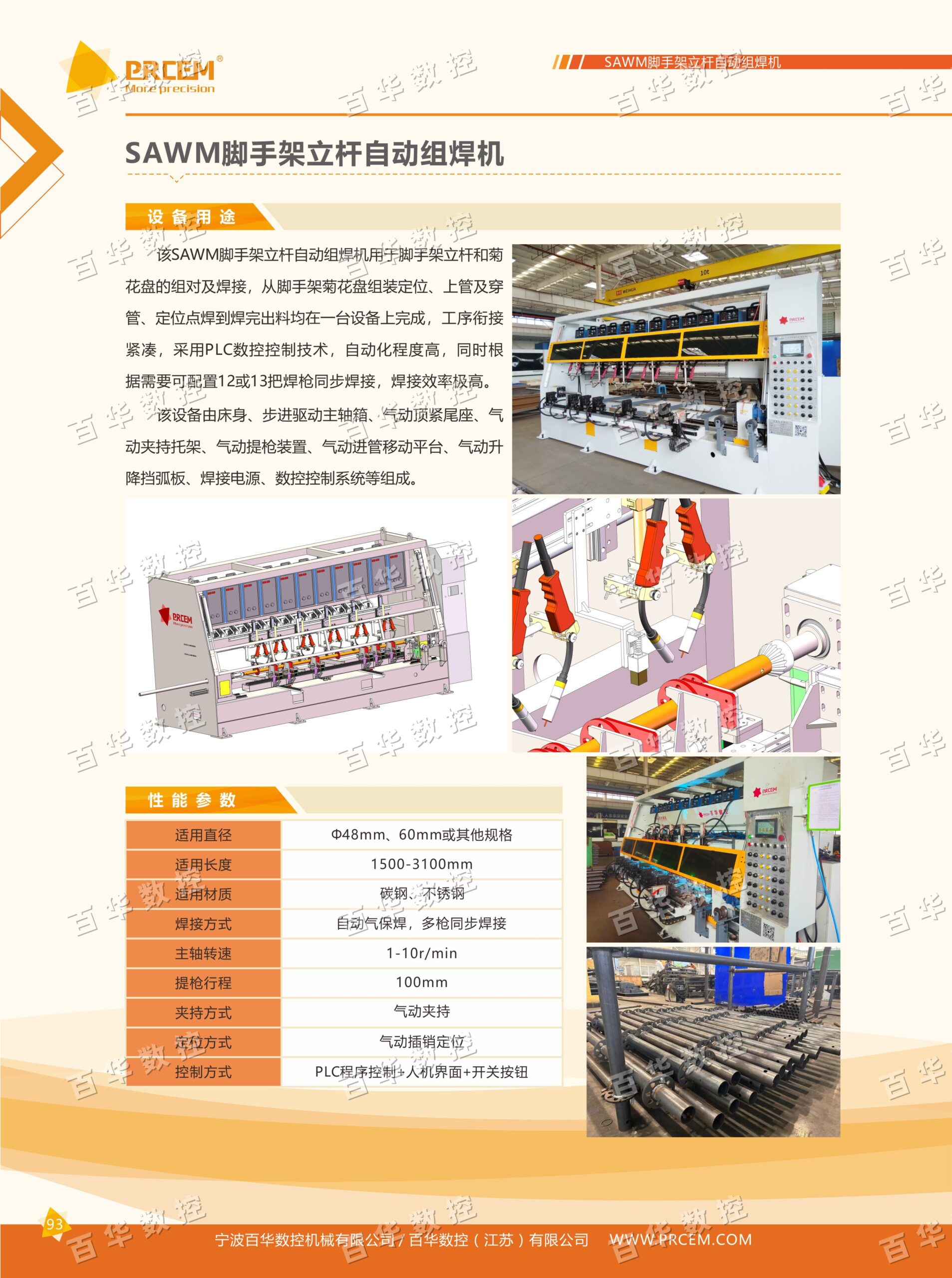

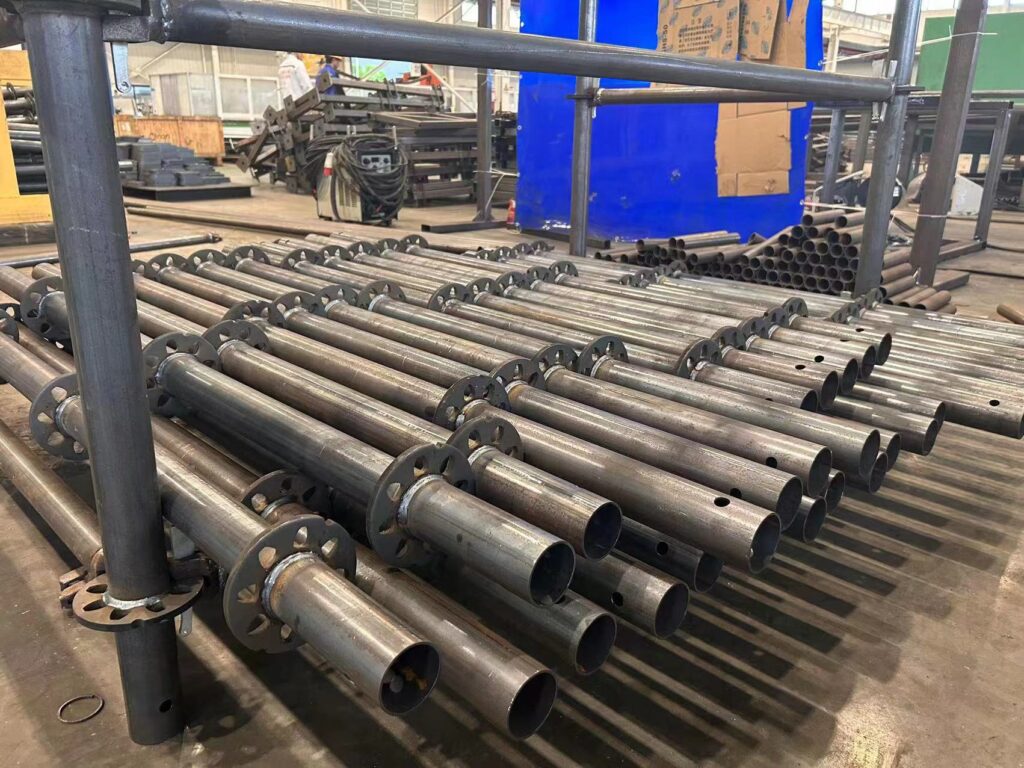

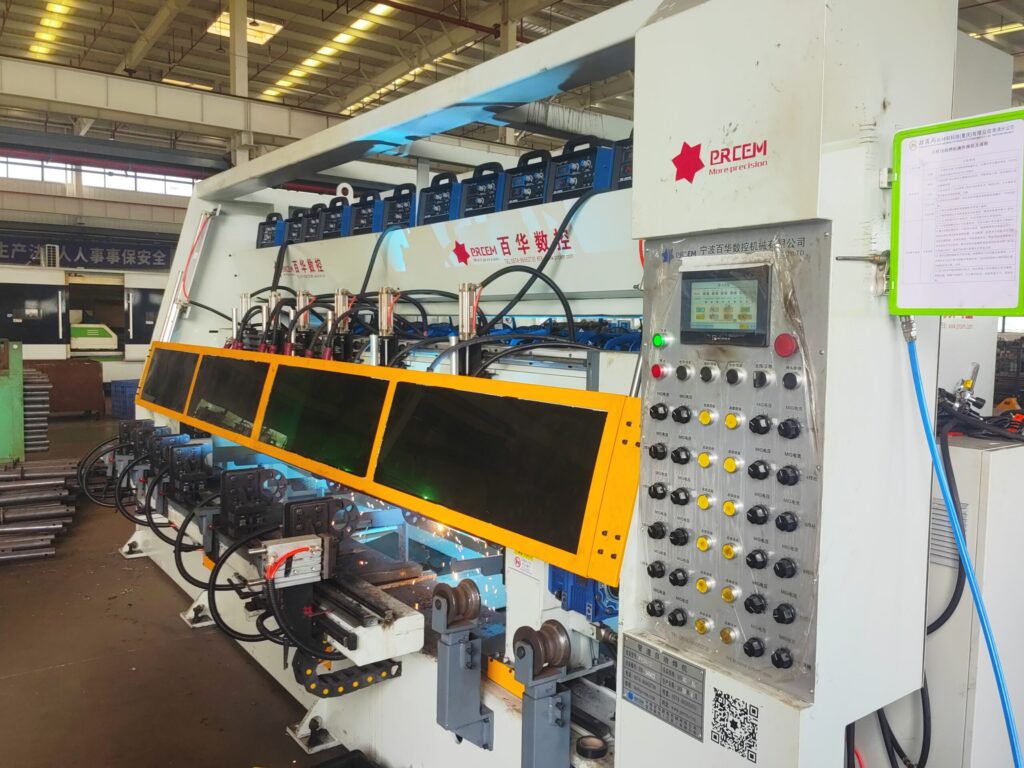

Product Brochure
Multi-angle display of product details and actual application scenarios
Product Specifications
Model specifications and technical performance indicators at a glance
| Item | Specification Details |
|---|---|
| Applicable Diameter | Φ48mm, 60mm or other specifications |
| Applicable Length | 1500-3100mm |
| Applicable Material | Carbon steel, stainless steel |
| Welding Method | Automatic gas shielded welding, multi-gun synchronous welding |
| Spindle Speed | 1-10r/min |
| Gun Lifting Stroke | 100mm |
| Clamping Method | Pneumatic clamping |
| Positioning Method | Pneumatic pin positioning |
| Control Method | PLC program control + HMI + switch buttons |
※Due to continuous product iteration and upgrades, as well as varying working conditions across different industries, configurations and performance parameters are subject to the product order specifications.
