PPM Series Pipe End Automatic Grinding Machine
Product Overview
Solving your business pain points through innovative technical solutions
The PPM series pipe end automatic grinding machine is mainly used for fine grinding and polishing of the pipe end bevel surface and surrounding areas before welding, providing high-quality pipe end preparation for subsequent high-quality welding. This pipe end grinder is automatically controlled by PLC CNC programs, with grinding parameters preset and displayed on the human-machine interface. It can perform single-end grinding on steel pipes, or arrange one set of main units at both ends of the pipe for synchronous grinding, further improving grinding efficiency to achieve the goals of reducing labor, improving quality, increasing efficiency, and being energy-saving and environmentally friendly.

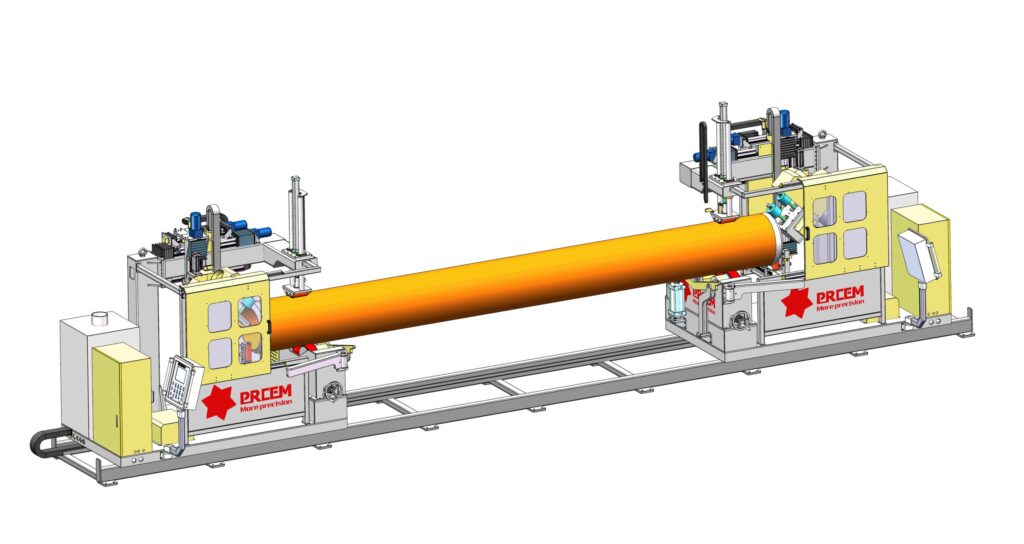

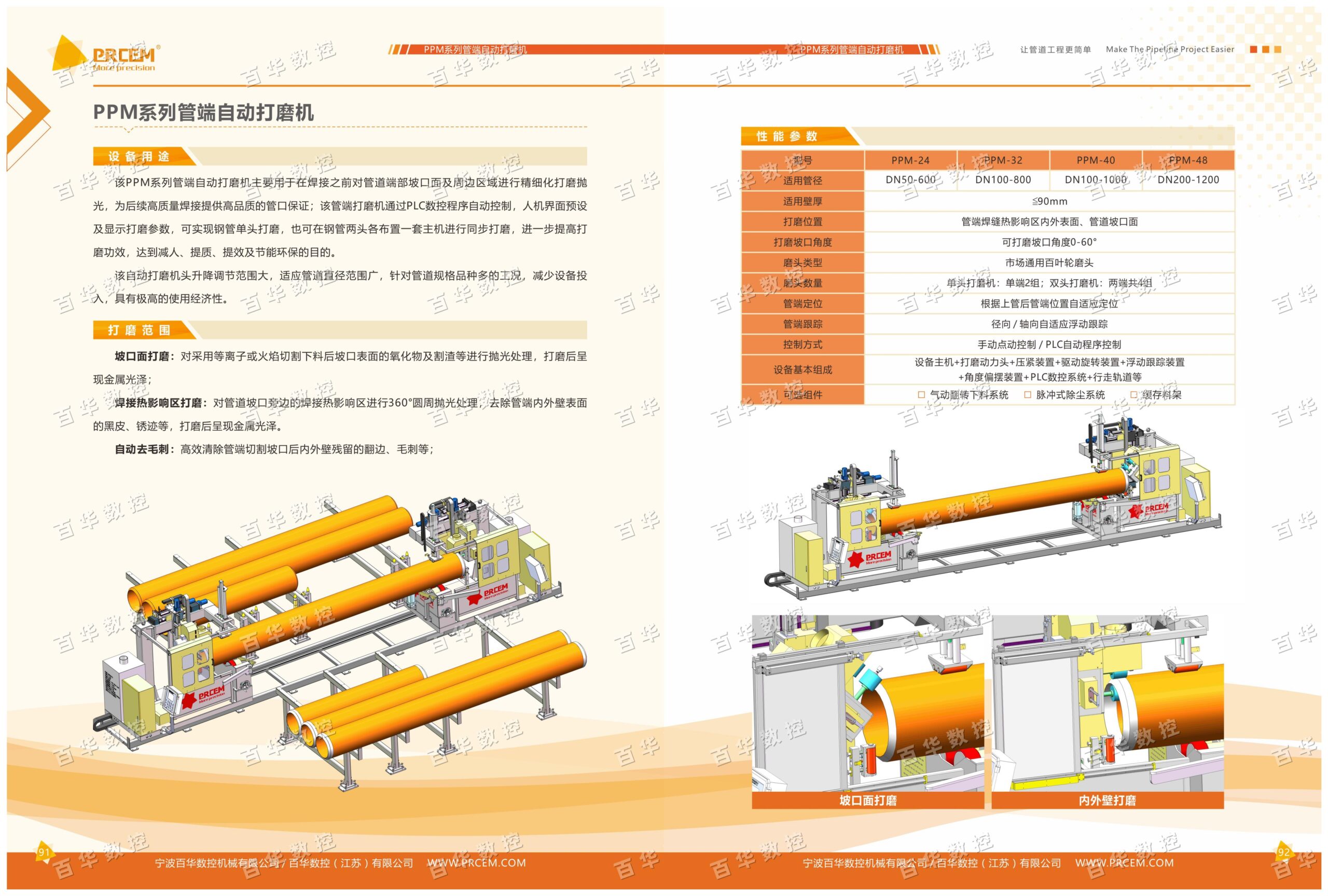

Product Brochure
Showcasing product details and actual application scenarios from multiple angles
Grinding Range
Stringent process standards ensure the reliability of every weld point

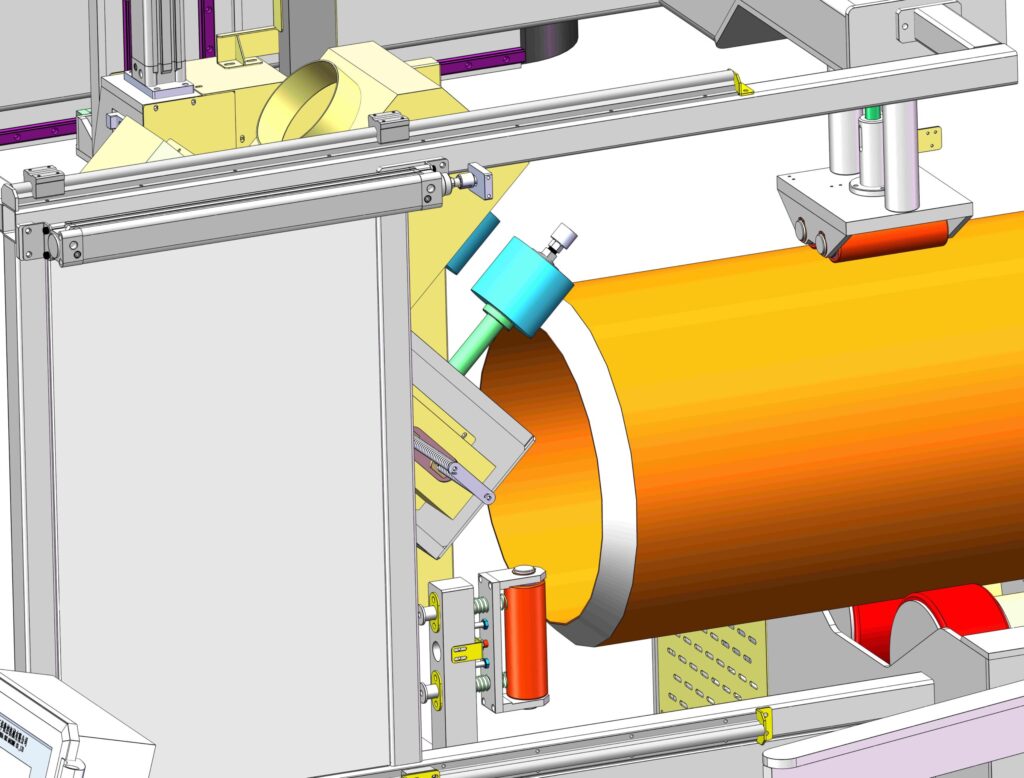

- Bevel surface grinding: Polishing treatment of oxides and slag on the bevel surface after plasma or flame cutting, presenting a metallic luster after grinding.

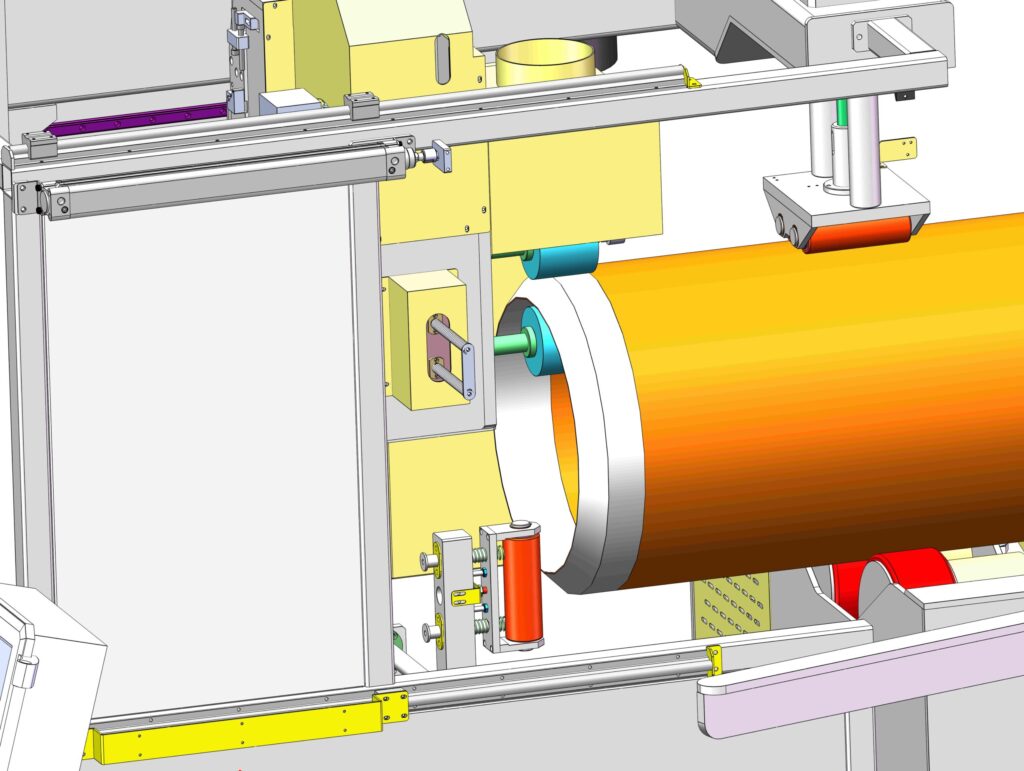

- Weld heat-affected zone grinding: 360° circumferential polishing treatment of the weld heat-affected zone near the pipe bevel, removing black skin, rust, etc. on the inner and outer wall surfaces of the pipe end, presenting a metallic luster after grinding.
- Automatic deburring: Efficiently removes burrs and flanges remaining on the inner and outer walls after pipe end bevel cutting.
Product Specifications
Model specifications and technical performance indicators
| Model | PPM-24 | PPM-32 | PPM-40 | PPM-48 |
|---|---|---|---|---|
| Applicable Pipe Diameter | DN50-600 | DN100-800 | DN100-1000 | DN200-1200 |
| Applicable Wall Thickness | ≦90mm | |||
| Grinding Position | Inner/outer surfaces of pipe end weld heat-affected zone, pipe bevel surface | |||
| Bevel Angle for Grinding | Can grind bevel angles of 0-60° | |||
| Grinding Head Type | Market-standard flap disc grinding heads | |||
| Number of Grinding Heads |
Single-end grinder: 2 sets per end
Double-end grinder: 4 sets total (2 per end)
|
|||
| Pipe End Positioning | Adaptive positioning based on pipe end position after loading | |||
| Pipe End Tracking | Radial/axial adaptive floating tracking | |||
| Control Method | Manual jog control / PLC automatic program control | |||
| Basic Equipment Composition | Main unit + grinding power head + clamping device + drive rotation device + floating tracking device + angle deflection device + PLC CNC system + walking track, etc. | |||
| Optional Components |
Pneumatic flipping unloading system
Pulse dust removal system
Buffer rack
|
|||
※Due to continuous product iteration and upgrades, as well as different working conditions among users in different industries, configurations and performance parameters are subject to the product order.
