PMG Series Multi-functional Pipe Alignment Machine
Product Overview
Solving your business pain points through innovative technical solutions
The PMG series multi-functional pipe alignment machine is mainly used for mechanical alignment before welding of pipe+pipe, pipe+elbow, pipe+flange, pipe+tee, fitting+fitting, etc. It improves alignment accuracy to provide standard weld preparation for automatic welding, enhancing both welding efficiency and pass rate.

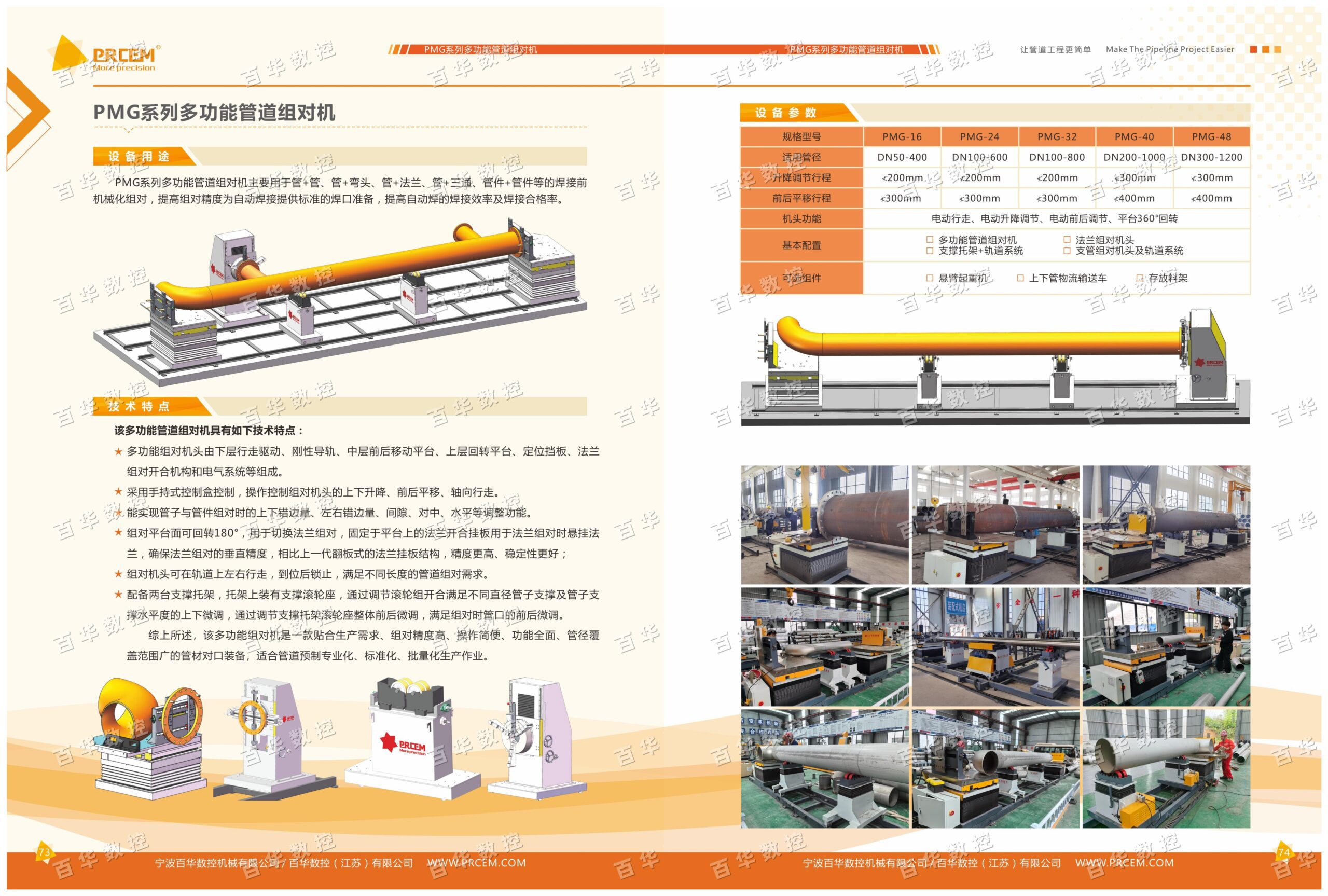

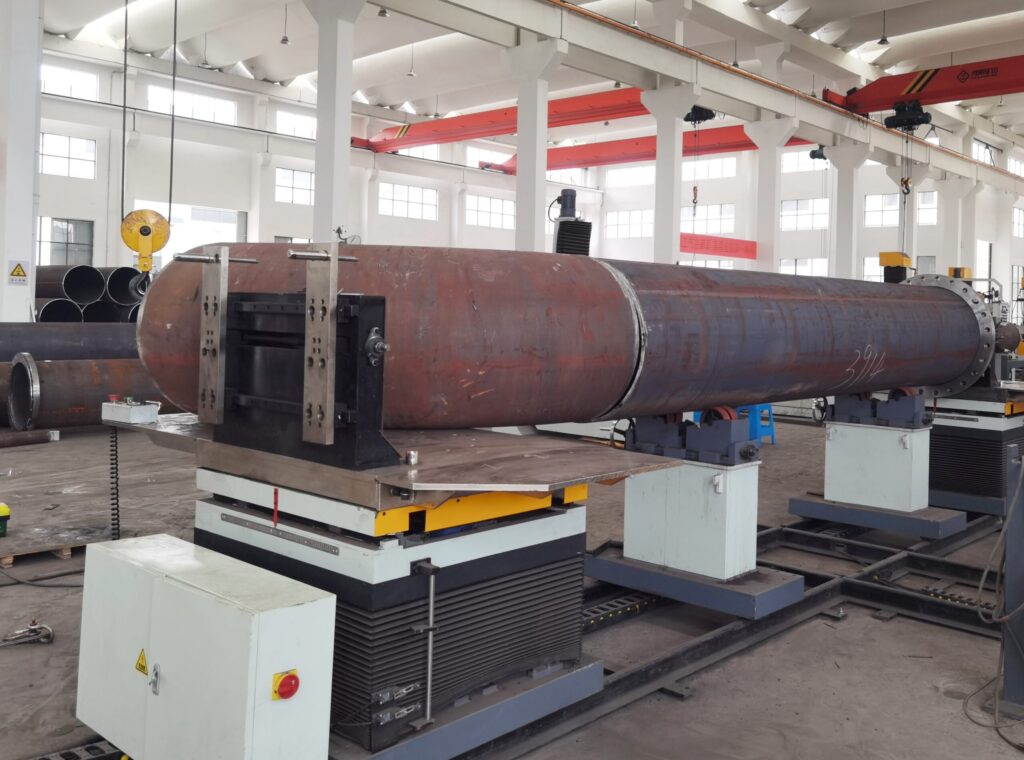

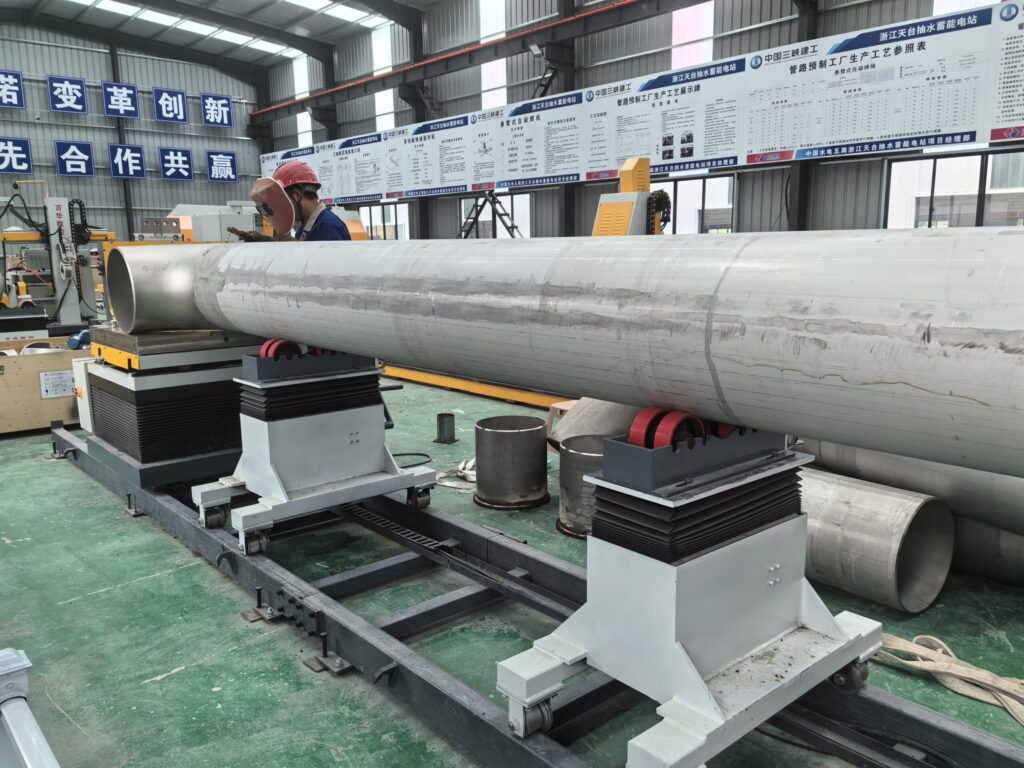

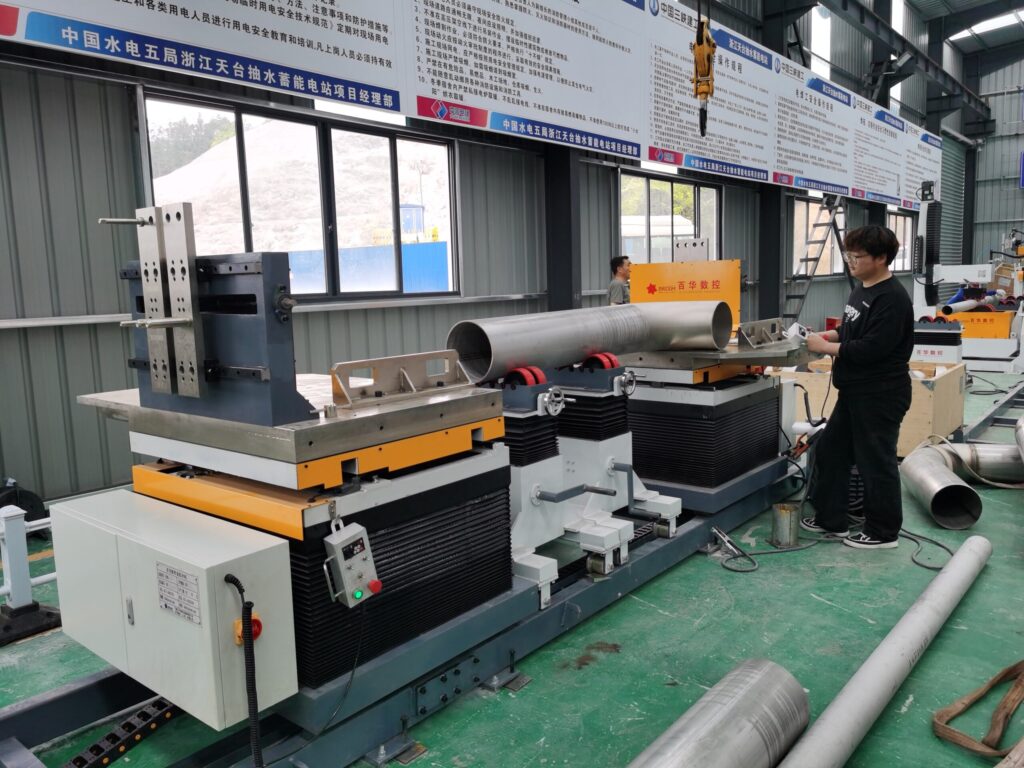

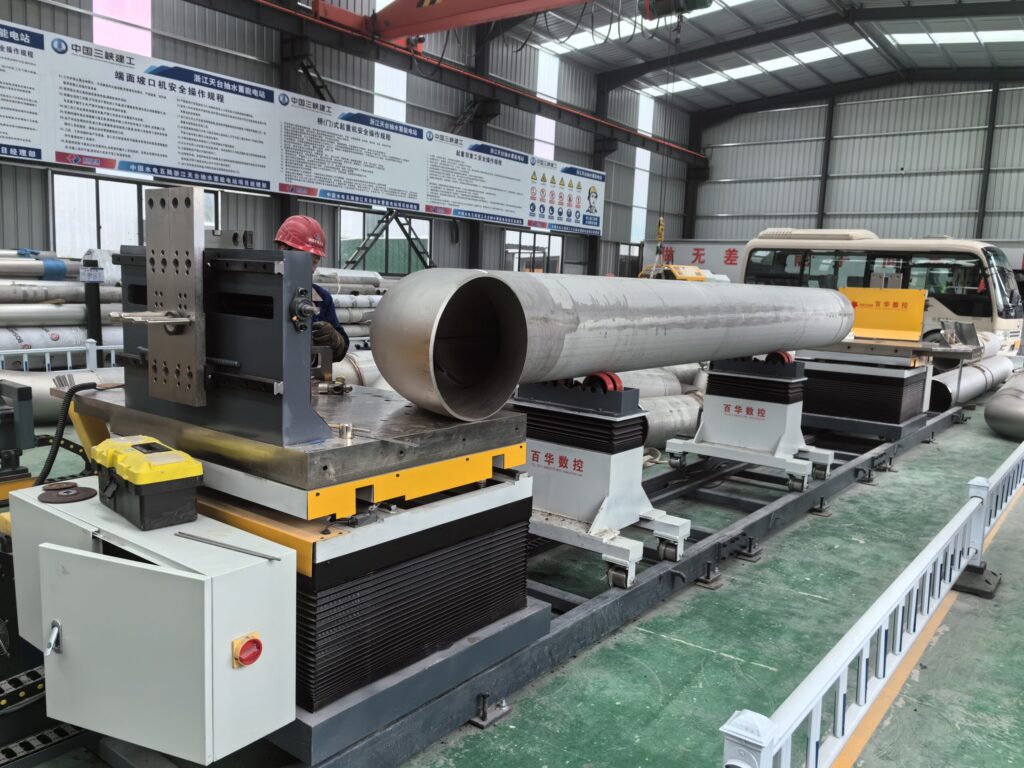

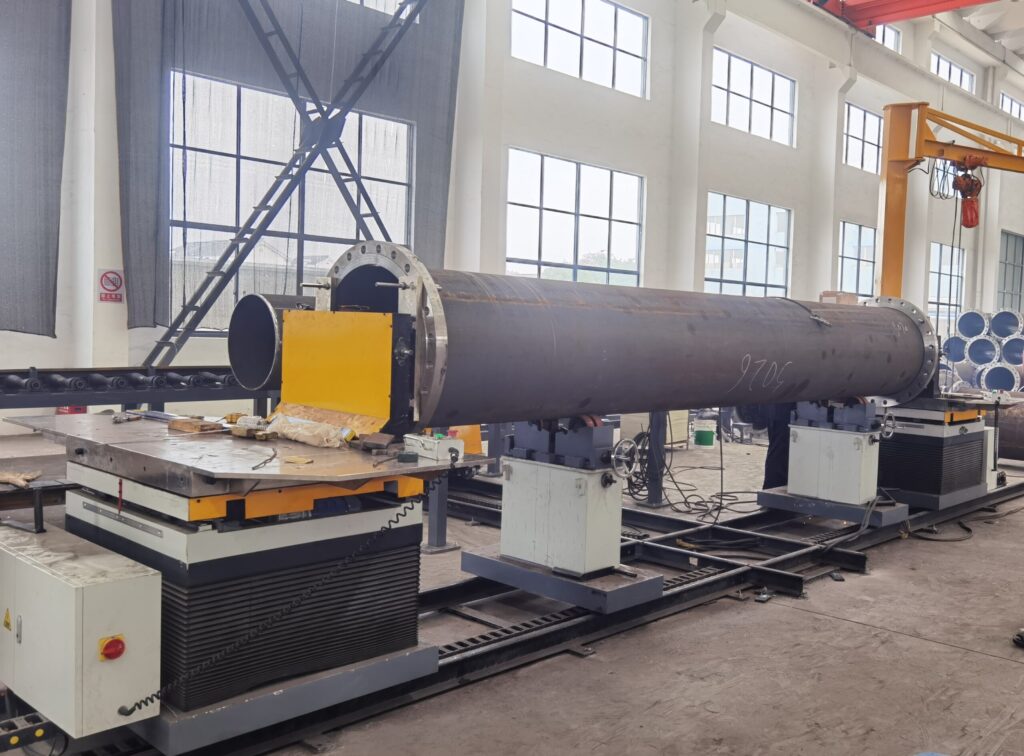

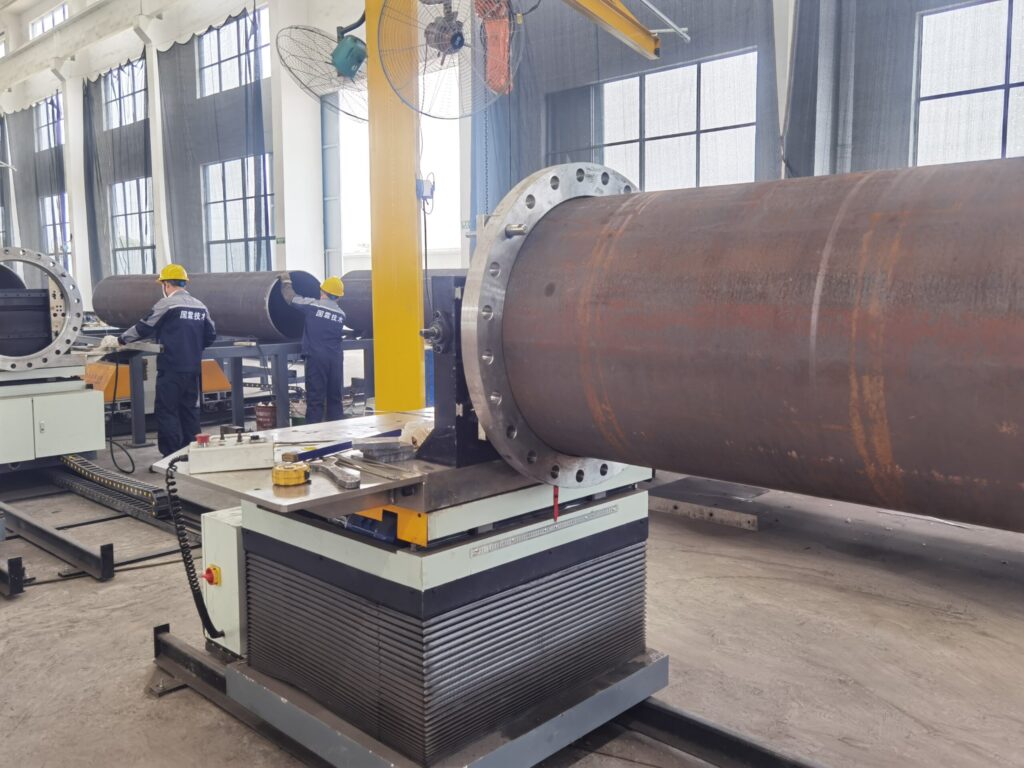

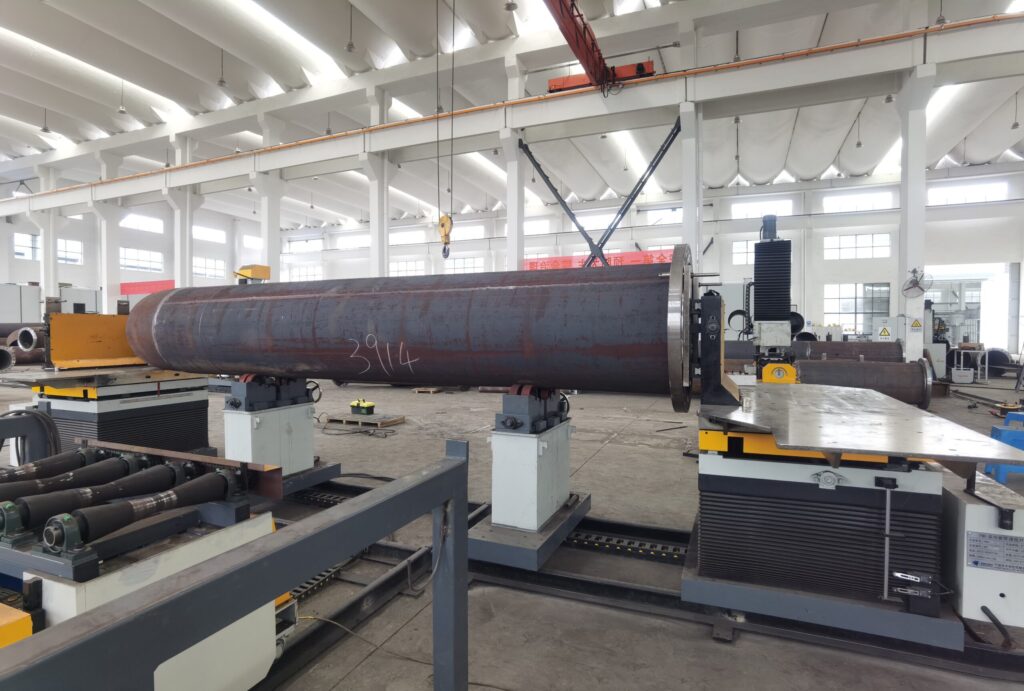

Product Brochure
Showcasing product details and real application scenarios from multiple perspectives
Product Specifications
Model specifications and technical performance metrics overview
| Model | PMG-16 | PMG-24 | PMG-32 | PMG-40 | PMG-48 |
|---|---|---|---|---|---|
| Applicable Pipe Diameter | DN50-400 | DN100-600 | DN100-800 | DN200-1000 | DN300-1200 |
| Height Adjustment Range | ≮200mm | ≮200mm | ≮200mm | ≮300mm | ≮300mm |
| Front-Back Translation Range | ≮300mm | ≮300mm | ≮300mm | ≮400mm | ≮400mm |
| Head Functions | Electric travel, electric height adjustment, electric front-back adjustment, 360° platform rotation | ||||
| Standard Configuration |
Multi-functional pipe alignment machine
Flange alignment head
Support bracket + rail system
Branch pipe alignment head and rail system
|
||||
| Optional Components |
Cantilever crane
Pipe loading/unloading logistics cart
Storage rack
|
||||
※Due to continuous product iteration and different working conditions across industries, actual configurations and performance parameters are subject to product ordering specifications.
