PPMW Series Pipe Fit-Up & Welding Integrated Machine

Product Overview

Solve your business pain points through innovative technical solutions

This PPMW series pipe fit-up & welding integrated machine is mainly used for mechanized assembly fit-up and automated welding of pipe-to-pipe, pipe-to-elbow, pipe-to-flange, pipe-to-tee, and fitting-to-fitting. The fit-up head improves fit-up accuracy, providing high-quality joint preparation for automatic welding. Meanwhile, the fit-up and welding functions are integrated into one unit, so the workpiece requires no secondary clamping and no transfer between fit-up and welding stations, improving work efficiency.

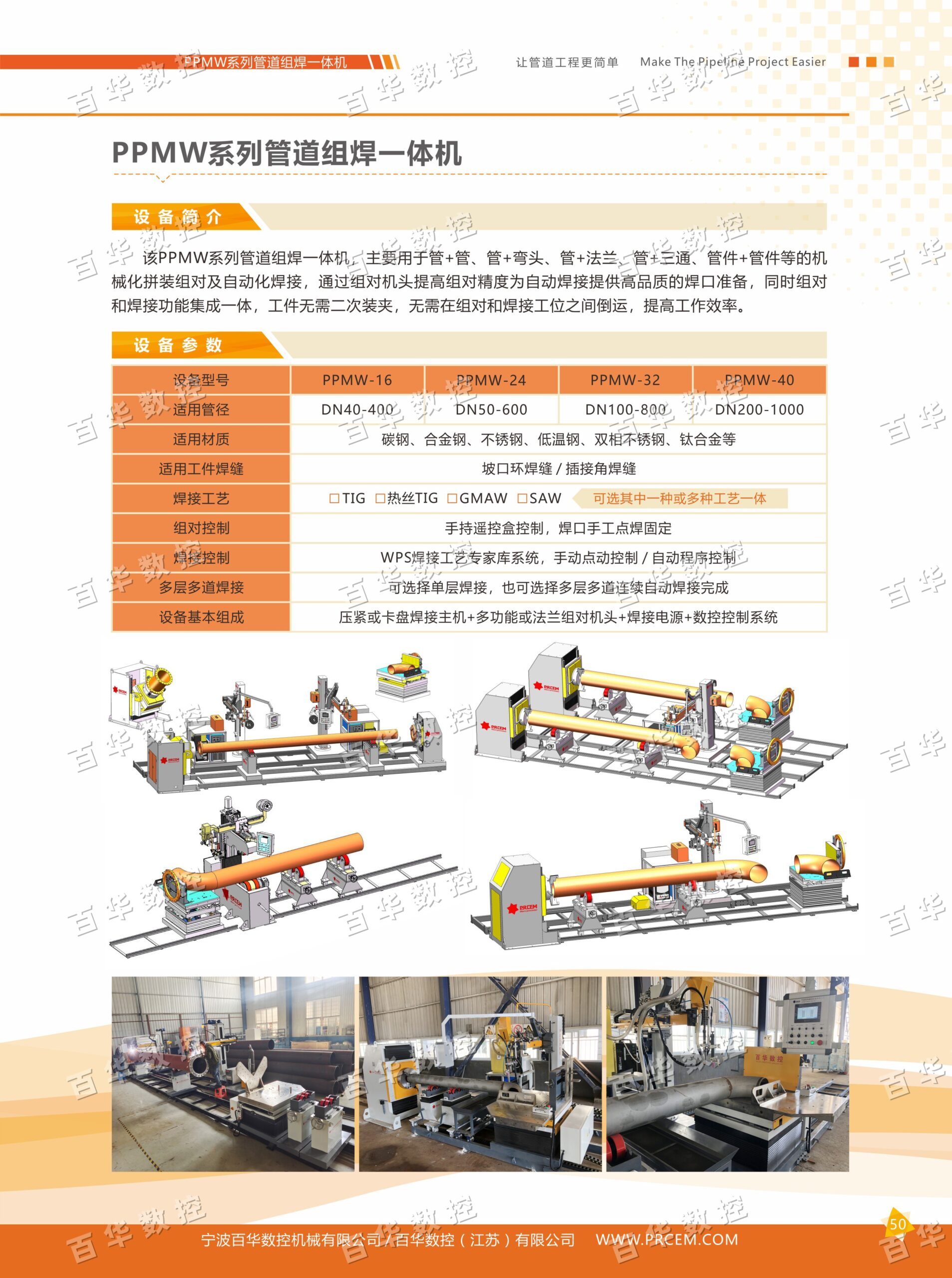

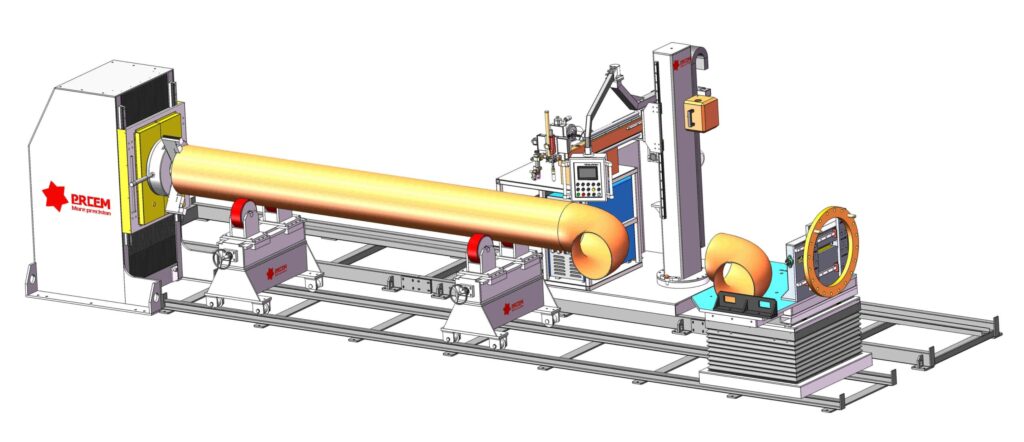

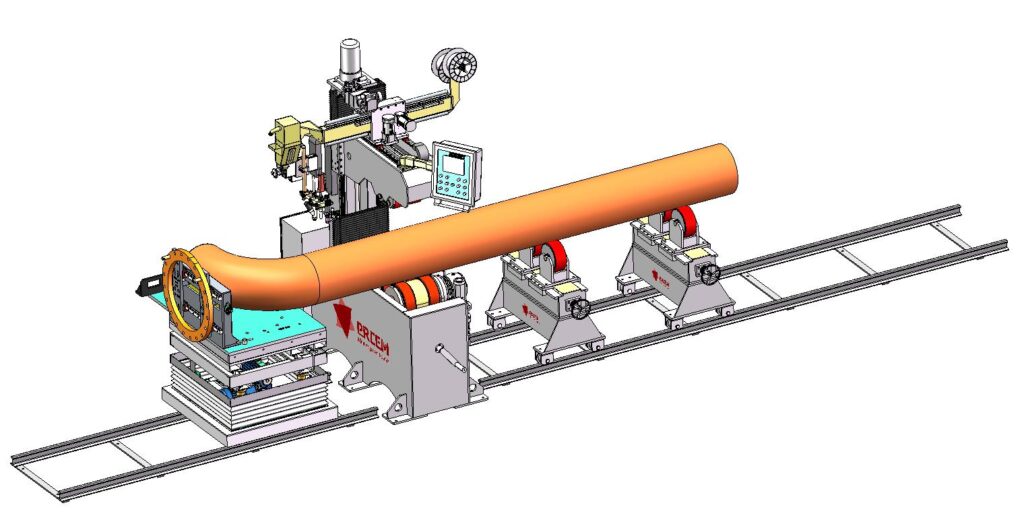

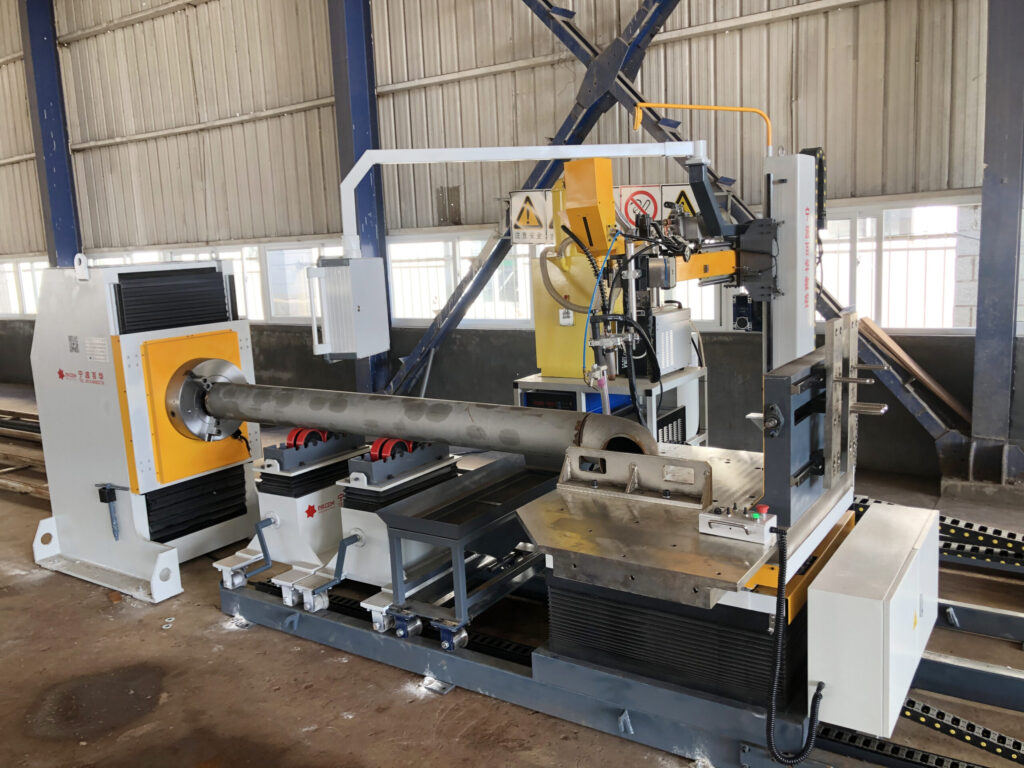

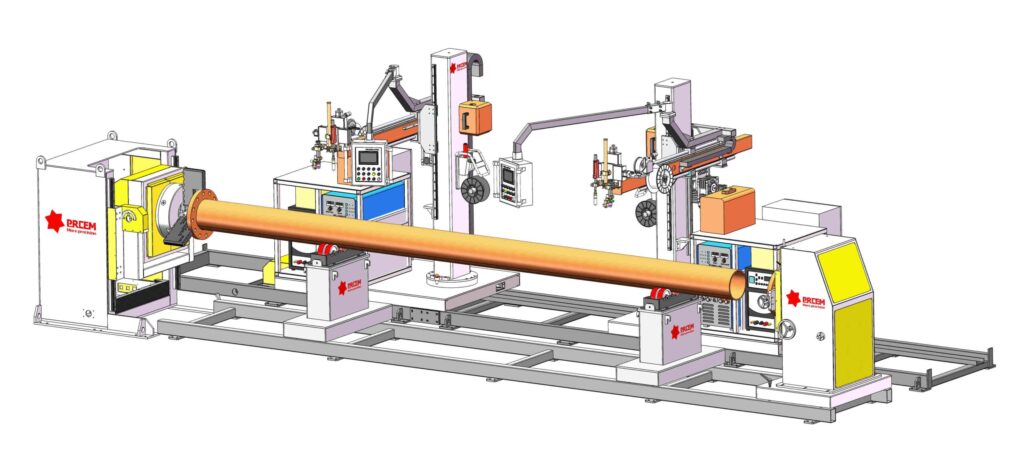

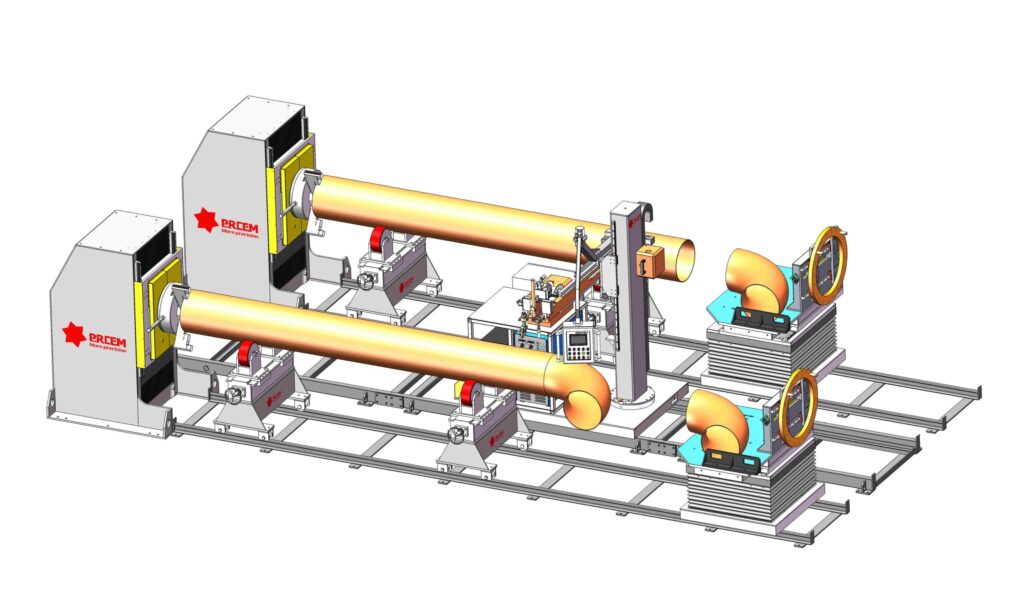

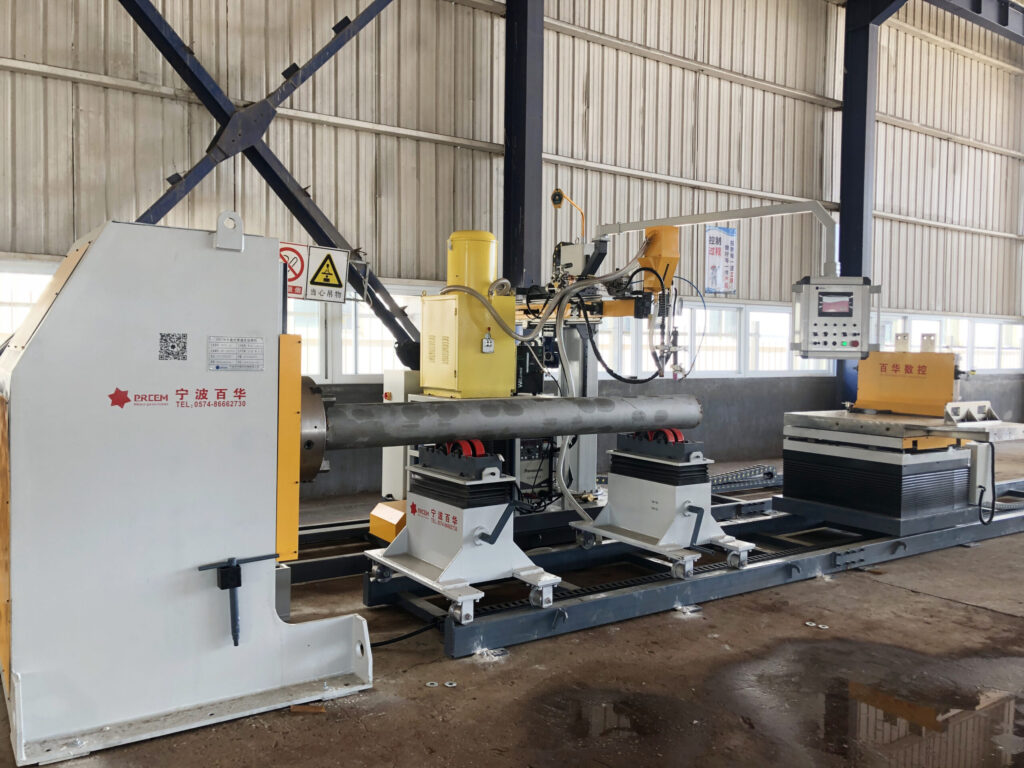

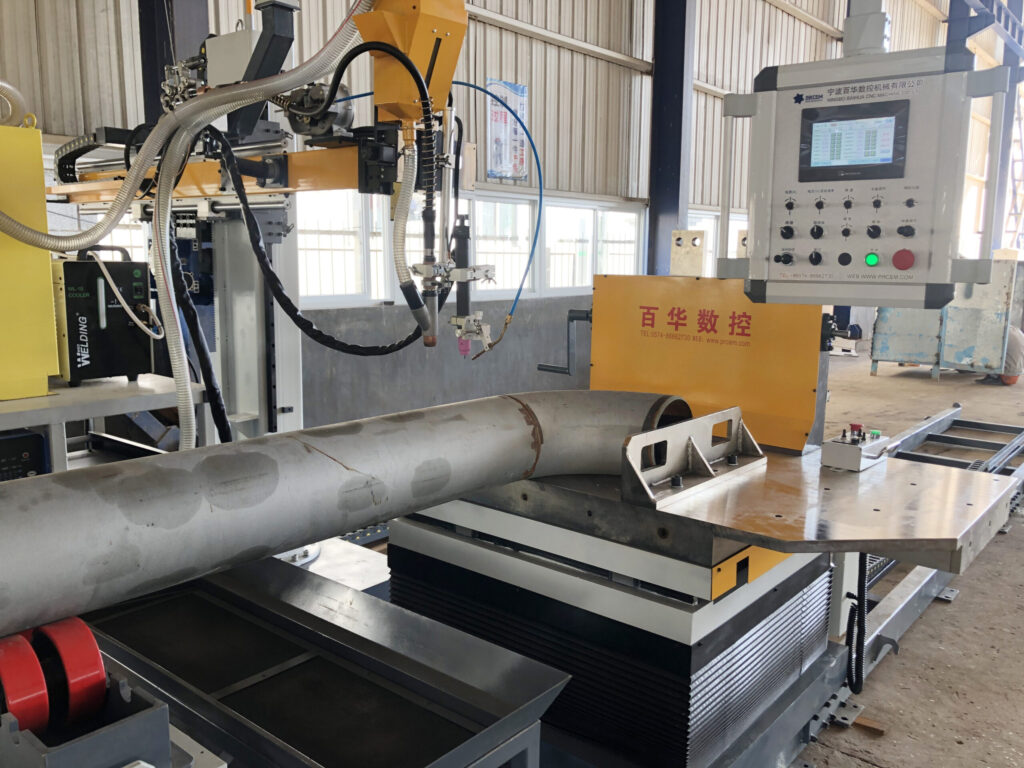

Product Brochure

Showcasing product details and real application scenarios from multiple angles

Product Specifications

Overview of model specifications and technical performance metrics

Equipment Specifications Table

Equipment Model	PPMW-16	PPMW-24	PPMW-32	PPMW-40
Applicable Pipe Diameter	DN40-400	DN50-600	DN100-800	DN200-1000
Applicable Material	Carbon steel, alloy steel, stainless steel, low-temperature steel, duplex stainless steel, titanium alloy, etc.
Applicable Workpiece Weld Seam	Bevel circumferential weld / Socket fillet weld
Welding Process	TIG Hot-wire TIG GMAW SAW (One or multiple processes can be selected and integrated)
Fit-Up Control	Handheld remote controller; manual tack welding to secure the joint
Welding Control	WPS welding process expert library system; manual jog control / automatic program control
Multi-Layer Multi-Pass Welding	Single-layer welding is available, or multi-layer multi-pass continuous automatic welding can be selected
Basic Equipment Composition	Clamping or chuck-type welding main unit + multifunction or flange fit-up head + welding power source + CNC control system

※Due to continuous product iterations and upgrades, and differences in operating conditions across industries and users, the configuration and performance parameters are subject to the product order.
