PFW Series Straight Pipe Flange Automatic Welding Machine
Product Overview
Solve your business pain points through innovative technical solutions

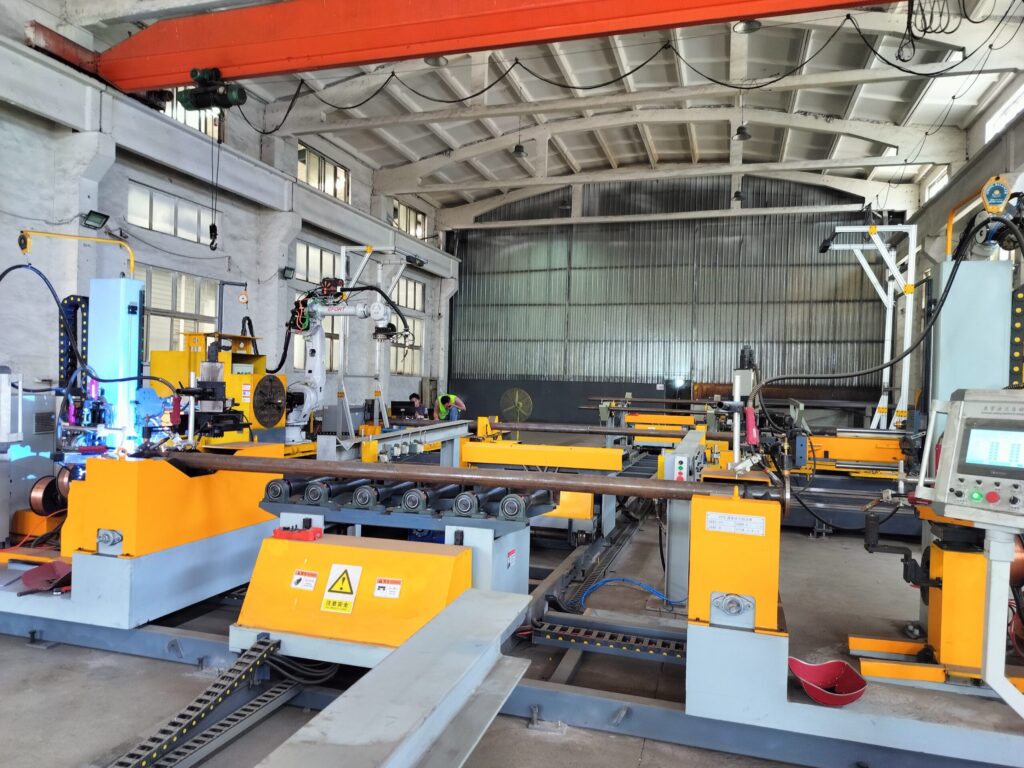

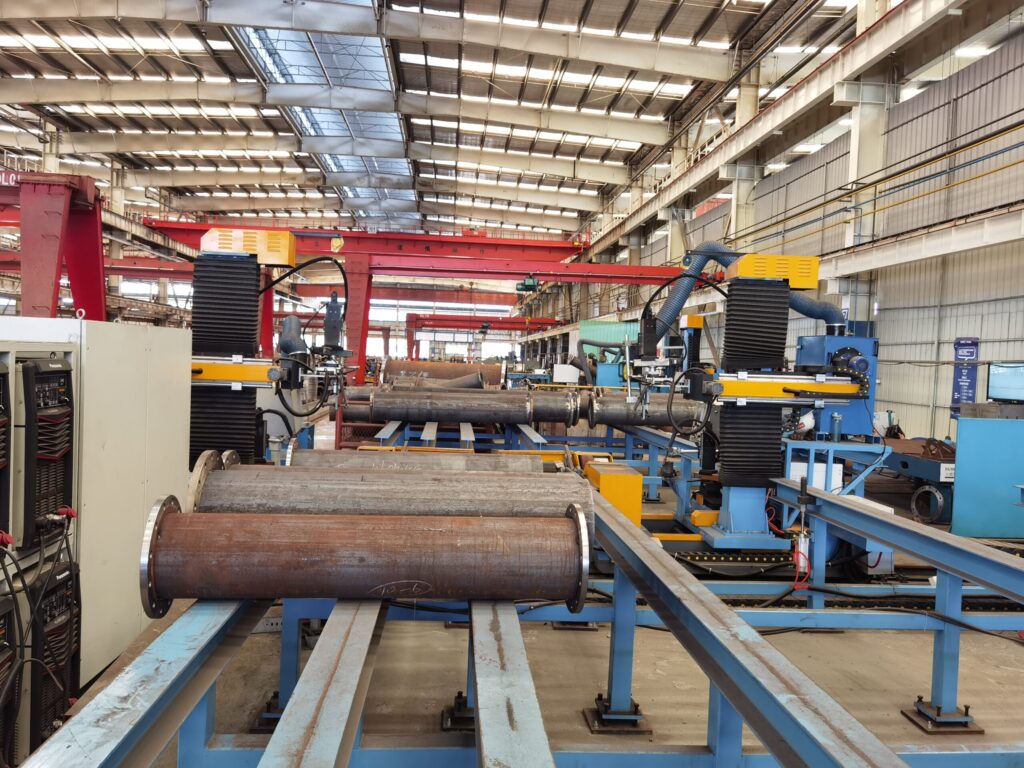

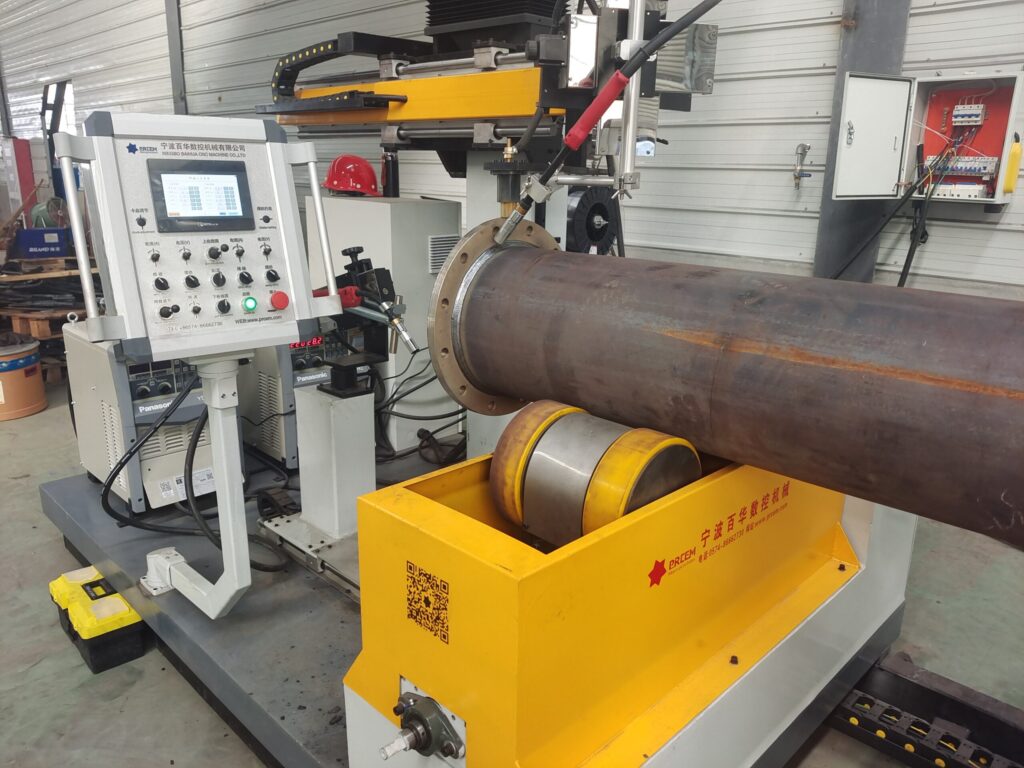

This PFW series straight pipe flange automatic welding machine is mainly used for automatic welding of straight pipes with slip-on flanges, straight pipes with reducing flanges, and straight pipes with sleeves in industries such as shipbuilding, offshore engineering, coal mining, chemical, and transmission towers. It uses roller drive to rotate the workpiece, with two or four welding torches performing high-speed synchronous welding. Two or four weld seams can be completed in one pass, delivering extremely high welding efficiency. It can also weld seamless pipes, spiral welded pipes, reinforced pipes, longitudinal welded pipes, galvanized pipes, and more.

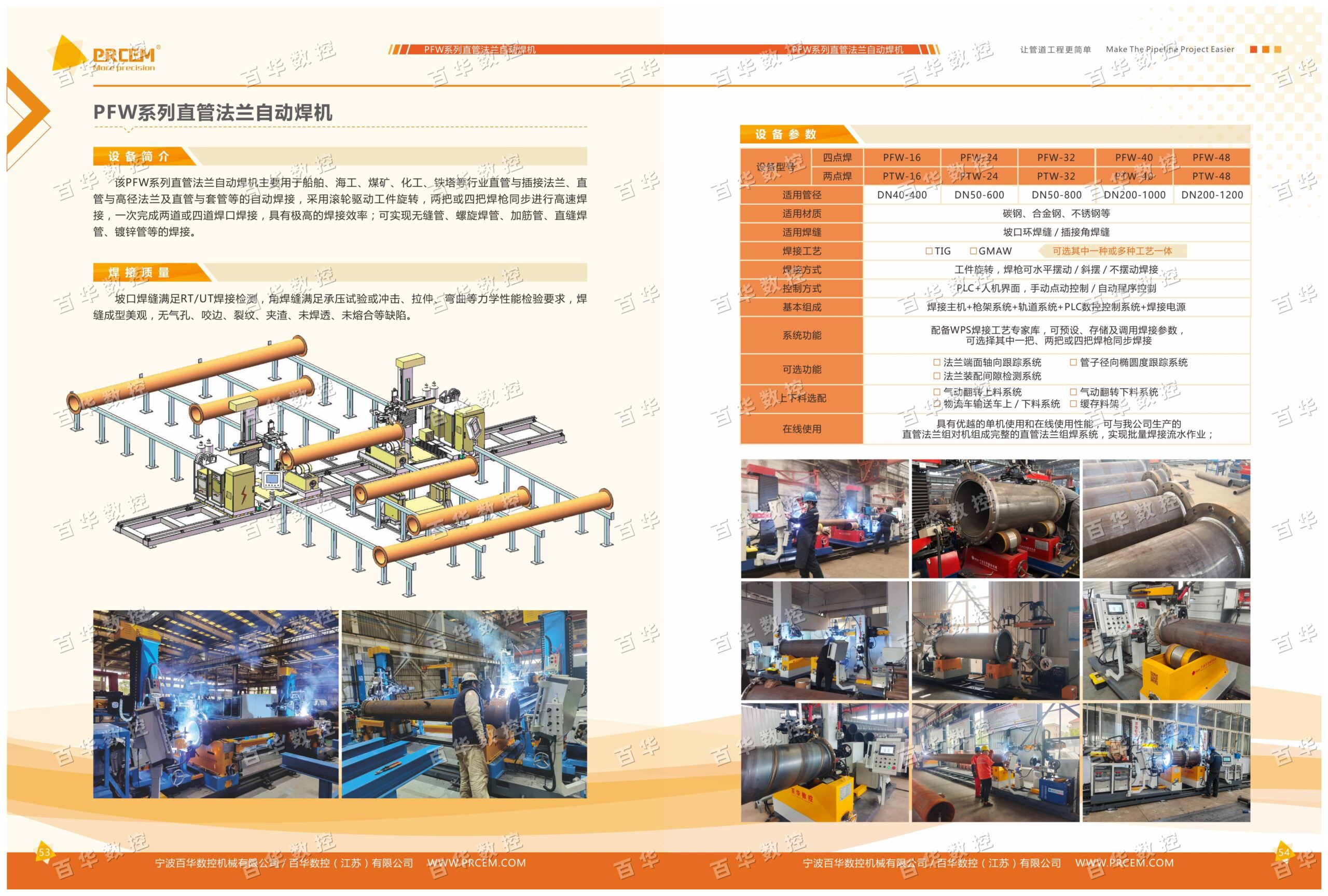

Product Brochure

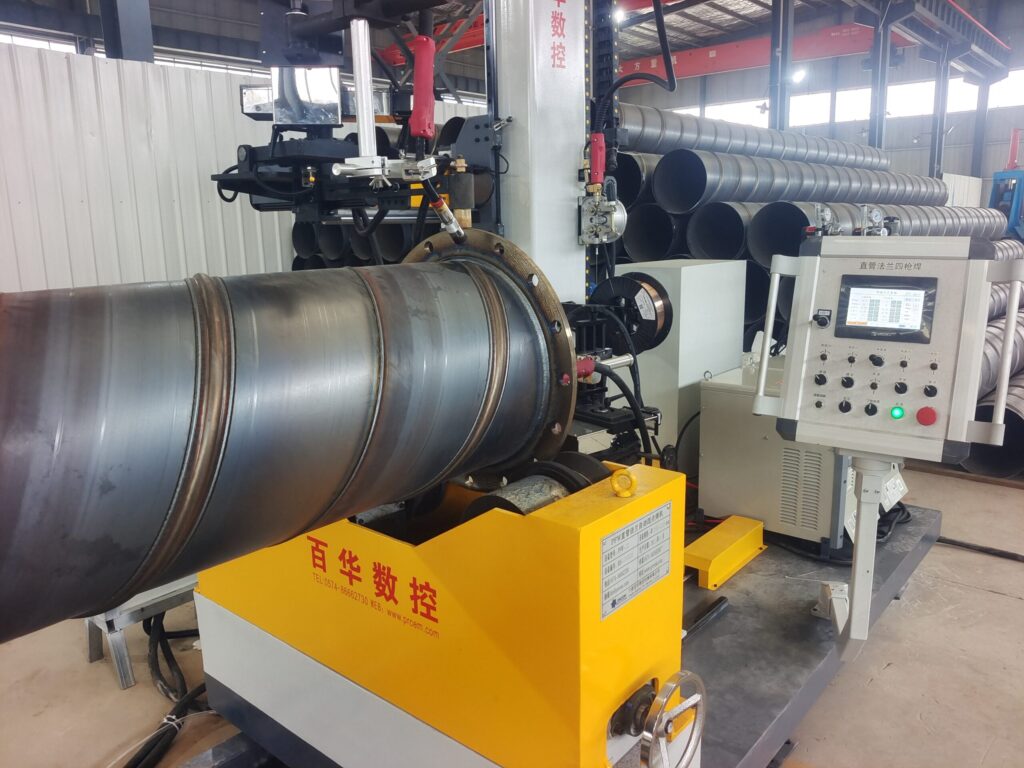

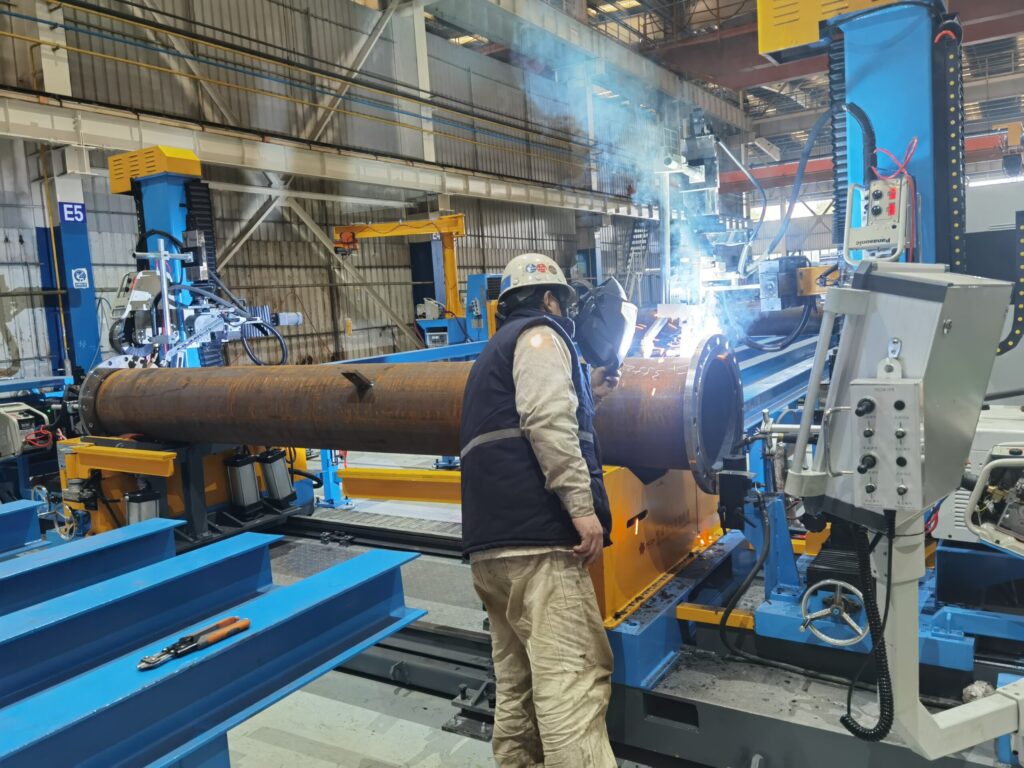

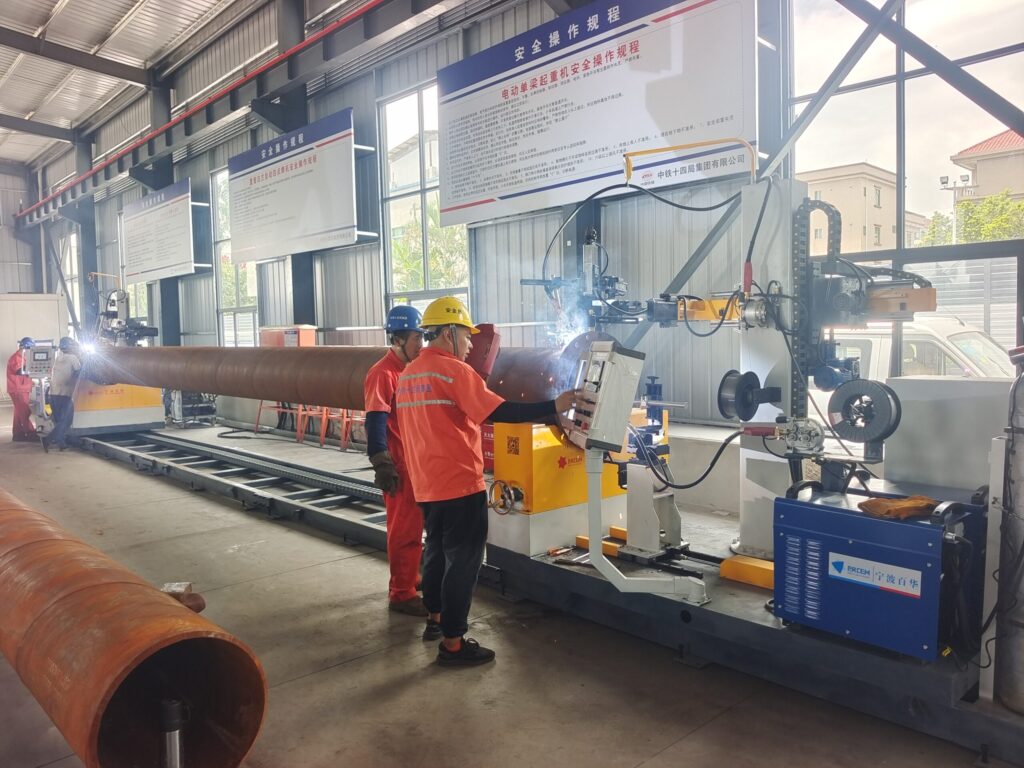

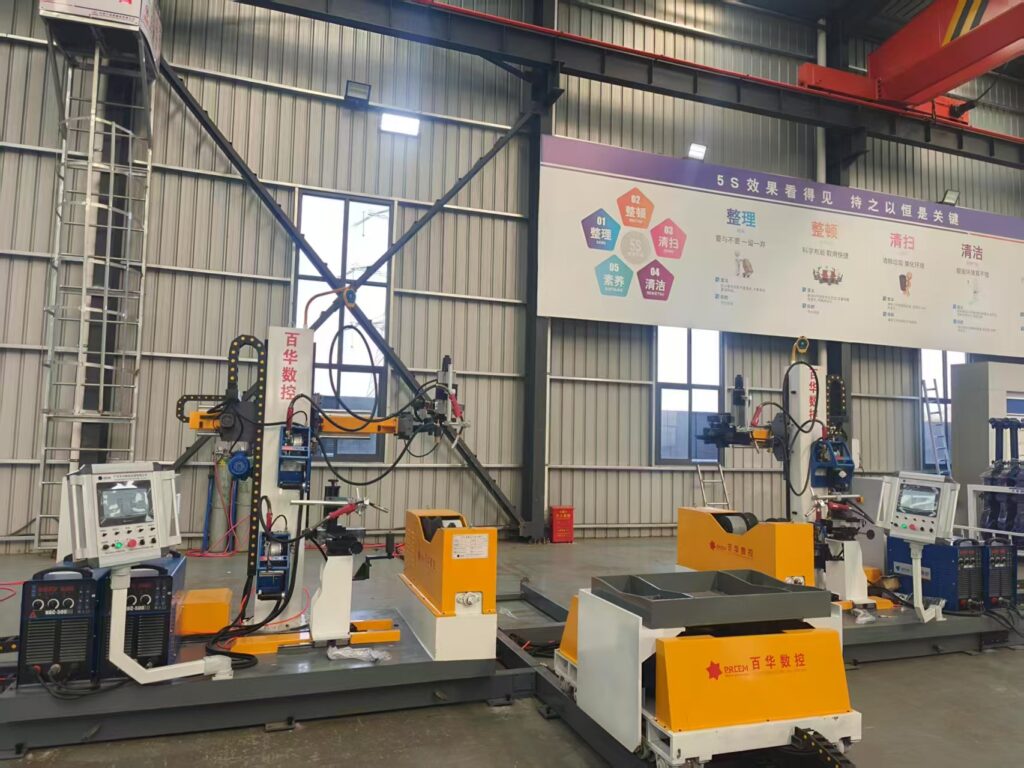

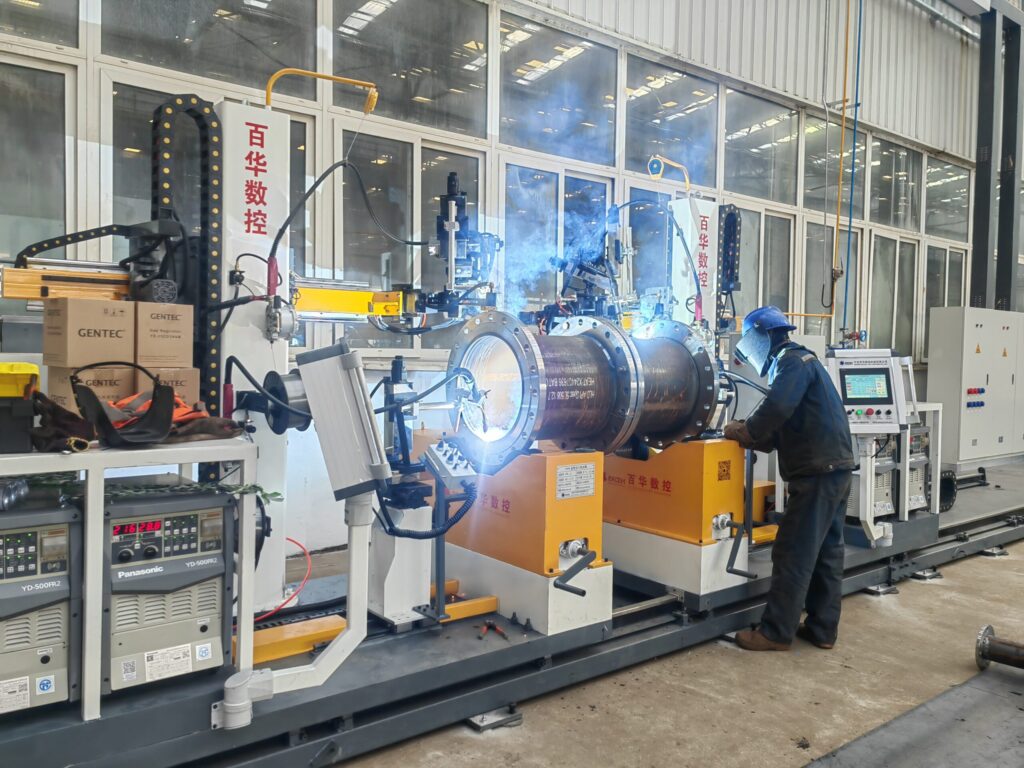

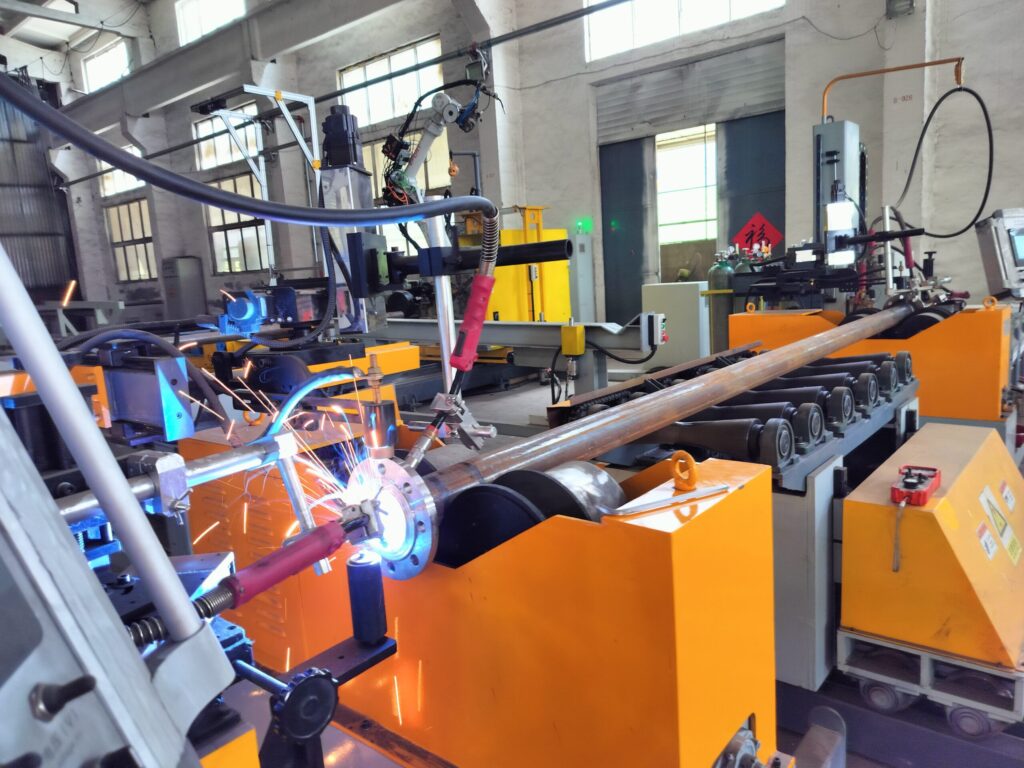

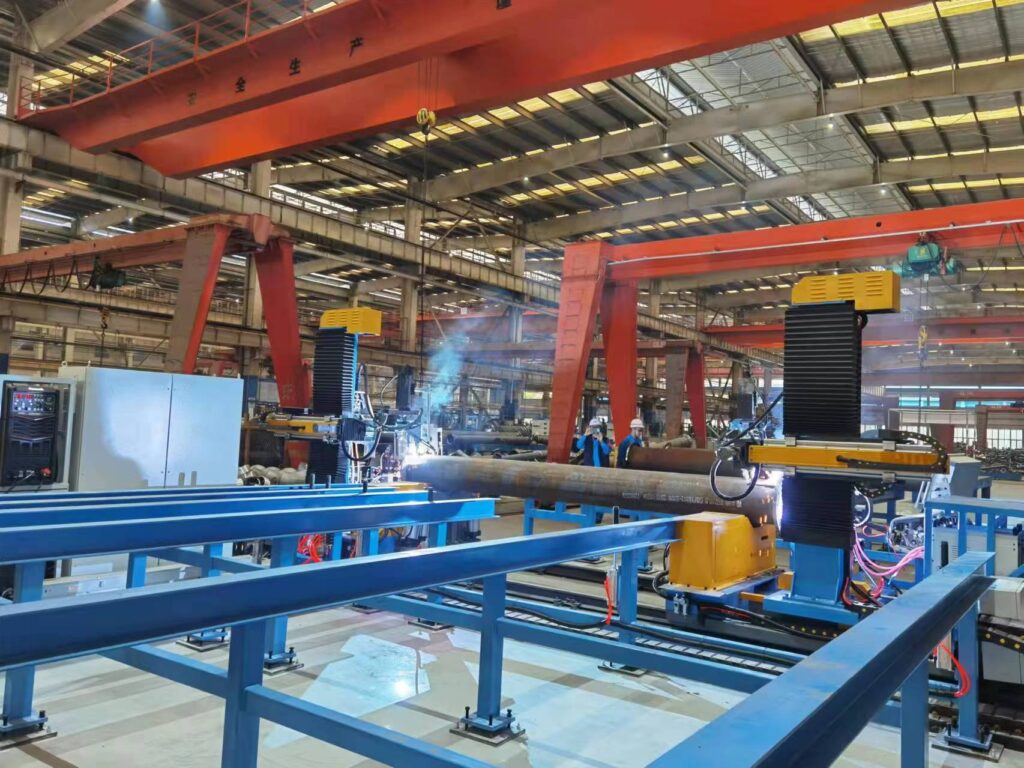

Show product details and real application scenarios from multiple angles

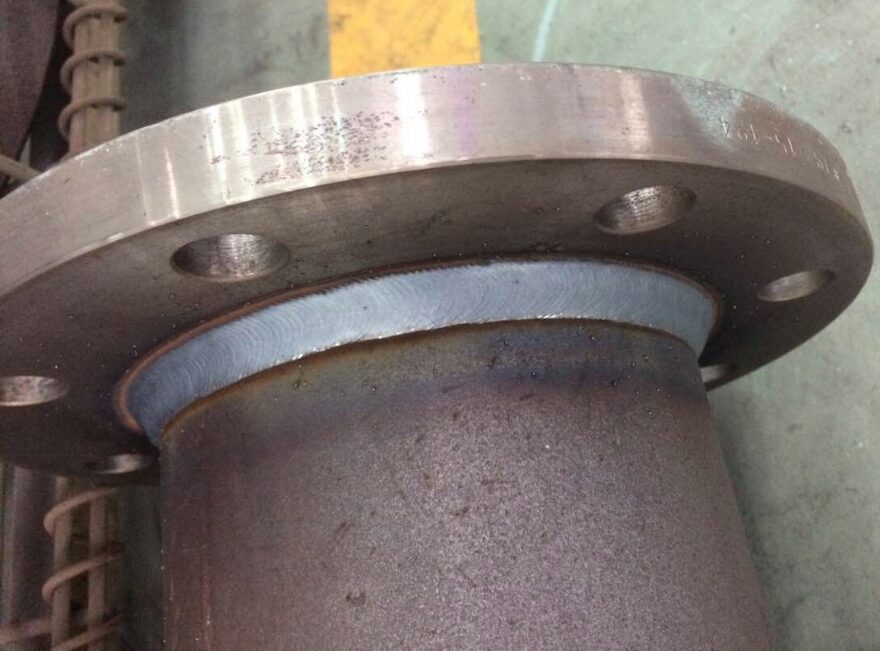

Welding Quality
Strict process standards ensure the reliability of every weld point
- Inspection qualified: Good welding quality; weld seams pass RT/UT inspection;
- Mechanical performance: Fillet welds meet the requirements for pressure testing or mechanical performance tests such as impact, tensile, and bending;
- Good appearance: Weld bead is well-formed and attractive, free of defects such as porosity, undercut, cracks, slag inclusion, incomplete penetration, and lack of fusion.
Product Specifications
Overview of model specifications and technical performance metrics
| 4-Point Welding Model | PFW-16 | PFW-24 | PFW-32 | PFW-40 | PFW-48 |
|---|---|---|---|---|---|
| 2-Point Welding Model | PTW-16 | PTW-24 | PTW-32 | PTW-40 | PTW-48 |
| Applicable Pipe Diameter | DN40-400 | DN50-600 | DN50-800 | DN200-1000 | DN200-1200 |
| Applicable Materials | Carbon steel, alloy steel, stainless steel, etc. | ||||
| Applicable Welds | Slip-on fillet weld / Beveled circumferential butt weld | ||||
| Welding Process |
TIG
GMAW
(Either one or both can be selected)
|
||||
| Control Method | PLC + HMI, manual jog control / automatic program control | ||||
| Basic Configuration | Welding main unit + torch bracket system + rail system + PLC CNC control system + welding power source | ||||
| Basic Functions | Equipped with a WPS welding process expert database; welding parameters can be preset, stored, and recalled; supports synchronous welding with one, two, or four torches | ||||
| Optional Functions |
Flange end-face axial tracking system
Pipe radial ovality tracking system
Flange assembly gap detection system
|
||||
| Optional Loading/Unloading |
Pneumatic flip loading system
Pneumatic flip unloading system
Logistics cart conveyor loading/unloading system
Buffer rack
|
||||
| In-Line Use | Offers excellent standalone and in-line performance; can be combined with our straight pipe flange fit-up machine to form a complete straight pipe flange fit-up and welding system, enabling batch welding flow-line operations | ||||
※Due to continuous product iterations and upgrades, and different operating conditions across industry users, configuration and performance parameters are subject to the product order.
