Baihua Company Provides Automatic Beveling and Welding Equipment for Nuclear Power High-Pressure Pipelines to a Group in Hebei

Main pipelines in the nuclear and thermal power industries feature thick walls, special materials, and large diameters. A single workpiece is usually between 5T and 20T, with high requirements for welding quality and a high degree of difficulty in welding processes.

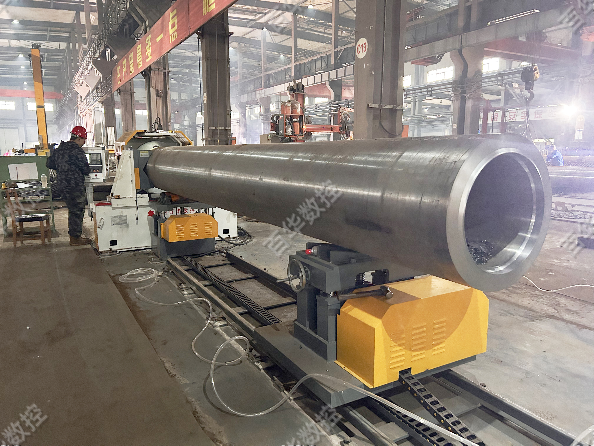

The beveling machine selected is our company’s PEM series CNC high-speed beveling machine, and the beveling process adopts a blade cold-cut chip process. The CNC beveling machine system has a built-in bevel profile library, covering all current pipe bevel processing forms, such as I-type, V-type, U-type, X-type, double V-type, V+U type, double V+U type, as well as inner beveling, internal boring, outer diameter machining, and flat end facing, etc. It is ideal equipment for high-speed pipe bevel processing;

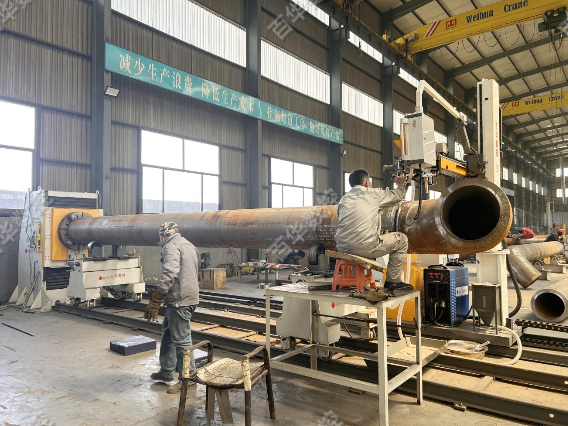

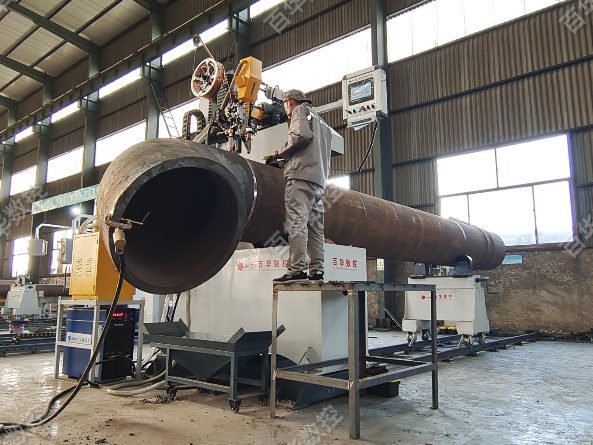

The heavy-duty press-clamping automatic welding machine and heavy-duty chuck-type automatic welding machine produced by our company can meet the prefabricated automatic welding needs of medium-to-thick-wall high-pressure pipelines in the power construction industry. Welding quality can be ensured without professional welders operating the equipment. It adopts a chuck lifting reinforced main unit or a heavy-duty press-clamping main unit and a specially designed drive structure, providing powerful driving torque to ensure the stability of welding rotation. During welding, the chuck clamps the end of the workpiece to drive rotation, and the cantilever welding machine travels and moves to each weld seam position for welding. One-time clamping enables automatic welding of weld seams at different positions along the pipe section, realizing automatic welding of pipe-to-pipe and pipe-to-fitting joints, such as: pipe + pipe, pipe + elbow, pipe + flange, pipe + tee, pipe + reducer, pipe + head, fitting + fitting, etc. The equipment runs stably and delivers good welding quality.
