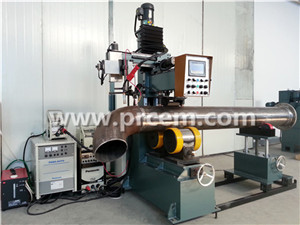

PPBW-24 Pipe Automatic

Model:PPBW -24(A/B)

Model specification:Pipe diameter applicable for PPBW -24: Φ60(168)-630mm, for other size, can make according to customers’  requirement Type-A: double gun structure, TIG welding first, then FCAW/GMAW welding. Type-B: single gun structure, FCAW/GMAW welding, then filling and welding

Use: Applicable for automatic welding, filling and welding of straight pipe-straight pipe, straight pipe-conical pipe, straight pipe-flange, straight pipe-elbow, straight pipe-tee, etc. in various industries.



Workpiece type:

Technical parameter:

Materials applicable

Carbon steel, alloy steel, stainless steel, cryogenic steel, etc.

Bevel shape

I, V, U, double V, etc.

Applicable pipe wall thickness

3-60mm

if elbow diameter≥DN200 and pipe wall thickness≥20mm, it need couterweight

Applicable pipe length

Straight pipe≥400mm

Welding capacity

TIG:80-120inch/day,CO2/MAG: 200-300inch/day

SAW:250-350inch/day
